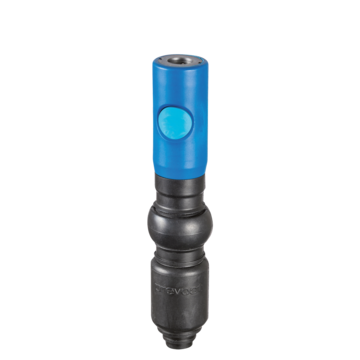

337_IRC_081100_800FA

Female thread swivel coupler

Disconnection

Button

Material

Composite

Max. output pressure

12 bar

Temperature

-15°C to 70°C

ID passage

8 mm

Type of filling

Valved

Plus de références

Reference

Net weight (kg)

Flow rate

Female thread

Profile

IRC 081101FA

IRC 081102FA

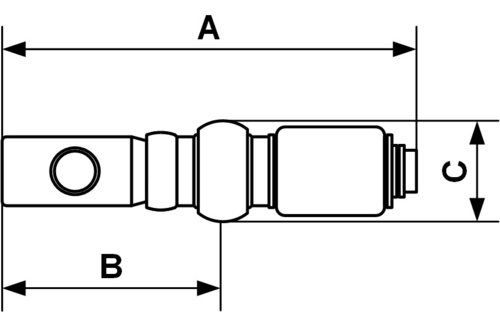

Dimensions

IRC_081100_FA

Reference

A (mm)

B (mm)

C (mm)

D (mm)

E (mm)

IRC 081101FA

185.2

68.5

40

IRC 081102FA

185.2

68.5

40

Reference	Net weight (kg)	Flow rate	Female thread	Profile	3D
IRC 081101FA	0.275 Kg	1950 l/min (P = 6 bar, ΔP = 0.6 bar)	G1/4	ISO 6150B
IRC 081102FA	0.278 Kg	1950 l/min (P = 6 bar, ΔP = 0.6 bar)	G3/8	ISO 6150B

Dimensions

Reference	A mm	B mm	C mm
IRC 081101FA	185.2	68.5	40
IRC 081102FA	185.2	68.5	40

IRC_081100_FA
