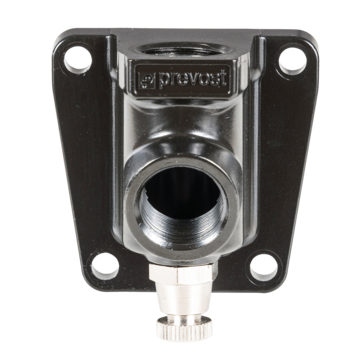

Female thread single wall bracket - Outlet 1 coupler and drain

Net weight (kg)

0,33

Material

Aluminium

Max. output pressure

16.00 bar

Female thread

G1/2

Temperature

-20.00°C to 80.00°C

Reference

Net weight (kg)

Material

Max. output pressure

Female thread

Temperature

MF 103S1

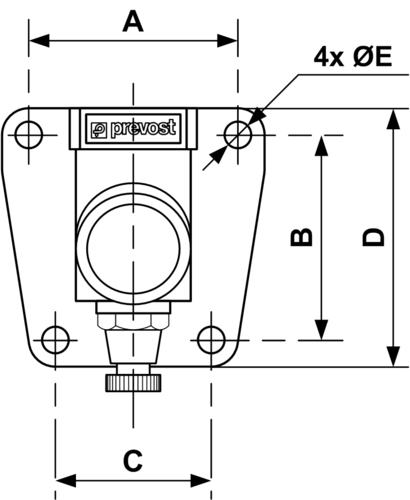

Reference

A (mm)

B (mm)

C (mm)

D (mm)

E (mm)

MF 103S1

6.5

Reference	Net weight (kg)	Material	Max. output pressure	Female thread	Temperature	3D
MF 103S1	0,33	Aluminium	16.00 bar	G1/2	-20.00°C to 80.00°C

Reference	A mm	B mm	C mm	D mm	E mm
MF 103S1	51	50	38	63	6.5
