Female thread one port wall bracket - 1 coupler and drain - ISO 6150 B Profile

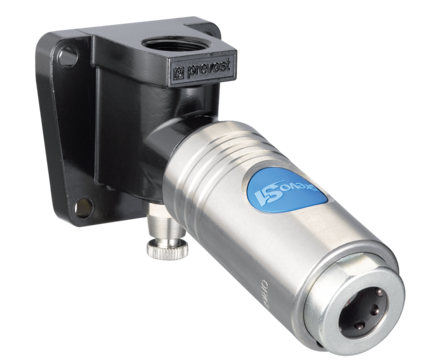

2613_ISI_111103WK
2613_ISI_111103WK
Net weight (kg)
0,815
Flow rate
3686.00 l/min (P = 6.00 bar ,ΔP = 0.60 bar)
Disconnection
Button
Material
Stainless steel
Max. output pressure
16.00 bar
Security
Safety
Female thread
G1/2
Temperature
-15.00°C to 70.00°C
ID passage
11 mm
Profile
ISO 6150B
Type of filling
Valved

Description

Reference
Net weight (kg)
Flow rate
Disconnection
Material
Max. output pressure
Security
Female thread
Temperature
ID passage
Profile
Type of filling
ISI 111103WK

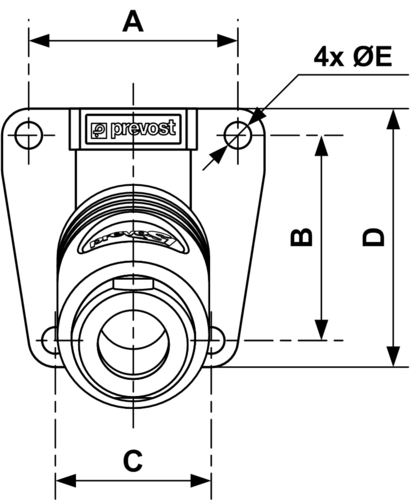

Dimensions

ISI_111_WK
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
ISI 111103WK
51
50
38
63
6.5

Description

Reference Net weight (kg) Flow rate Disconnection Material Max. output pressure Security Female thread Temperature ID passage Profile Type of filling 3D
ISI 111103WK 0,815 3686.00 l/min (P = 6.00 bar ,ΔP = 0.60 bar) Button Stainless steel 16.00 bar Safety G1/2 -15.00°C to 70.00°C 11 mm ISO 6150B Valved 3D

Dimensions

Reference A mm B mm C mm D mm E mm
ISI 111103WK 51 50 38 63 6.5
ISI_111_WK
