Female thread one port wall bracket - 1 coupler and drain - ISO 6150 B Profile

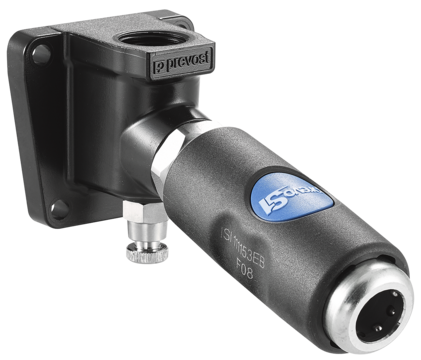

3530_ISI_111103EWK
3530_ISI_111103EWK
Flow rate
3686.00 l/min (P = 6.00 bar ,ΔP = 0.60 bar)
Disconnection
Button
Material
Polyamide
Max. output pressure
12.00 bar
Security
Safety
Female thread
G1/2
Temperature
-15.00°C to 70.00°C
ID passage
11 mm
Profile
ISO 6150B
Type of filling
Valved

Description

Reference
Flow rate
Disconnection
Material
Max. output pressure
Security
Female thread
Temperature
ID passage
Profile
Type of filling
ISI 111103EWK

Dimensions

Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
ISI 111103EWK
51
50
38
63
6.5

Description

Reference Flow rate Disconnection Material Max. output pressure Security Female thread Temperature ID passage Profile Type of filling 3D
ISI 111103EWK 3686.00 l/min (P = 6.00 bar ,ΔP = 0.60 bar) Button Polyamide 12.00 bar Safety G1/2 -15.00°C to 70.00°C 11 mm ISO 6150B Valved 3D
