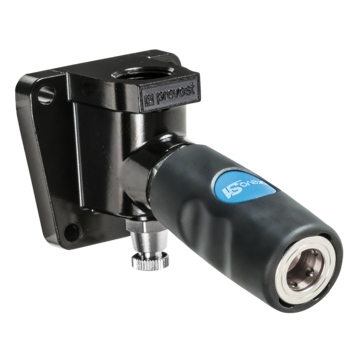

Female thread one port wall bracket - 1 coupler and drain - ISO 6150 B Profile
Female thread one port wall bracket - 1 coupler and drain - ISO 6150 B Profile
Flow rate
2028 l/min (P = 6 bar, ΔP = 0.60 bar)
Disconnection
Button
Material
Composite
Max. output pressure
12 bar
Sécurité
Safety
Temperature
-15°C to 70°C
ID passage
8 mm
Type of filling
Valved
Plus de références
Reference
Net weight (kg)
Female thread
Profile
ISI 081103WK

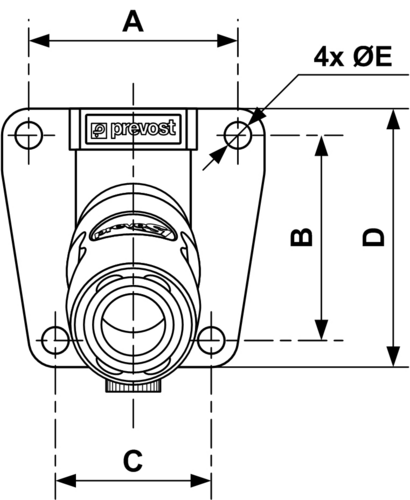

Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
ISI 081103WK
51
50
38
63
6.5
