Female thread one port wall bracket - 1 coupler and drain - European Profile

2614_ESI_071103WF
2614_ESI_071103WF
Net weight (kg)
0,468
Flow rate
1820.00 l/min (P = 6.00 bar ,ΔP = 0.60 bar)
Disconnection
Button
Material
Composite
Max. output pressure
12.00 bar
Security
Safety
Female thread
G1/2
Temperature
-15.00°C to 70.00°C
ID passage
7.4 mm
Profile
EUROPEAN
Type of filling
Valved

Description

Reference
Net weight (kg)
Flow rate
Disconnection
Material
Max. output pressure
Security
Female thread
Temperature
ID passage
Profile
Type of filling
ESI 071103WK

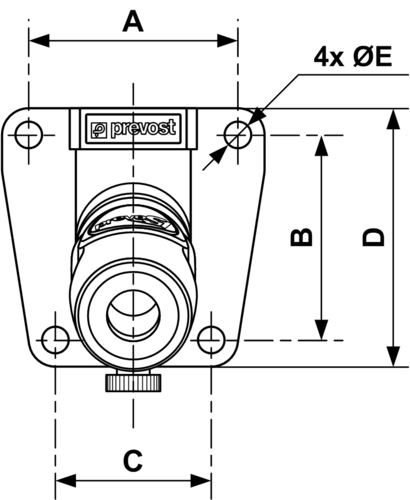

Dimensions

ESI_071_WK
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
ESI 071103WK
51
50
38
63
6.5

Description

Reference Net weight (kg) Flow rate Disconnection Material Max. output pressure Security Female thread Temperature ID passage Profile Type of filling 3D
ESI 071103WK 0,468 1820.00 l/min (P = 6.00 bar ,ΔP = 0.60 bar) Button Composite 12.00 bar Safety G1/2 -15.00°C to 70.00°C 7.4 mm EUROPEAN Valved 3D

Dimensions

Reference A mm B mm C mm D mm E mm
ESI 071103WK 51 50 38 63 6.5
ESI_071_WK
