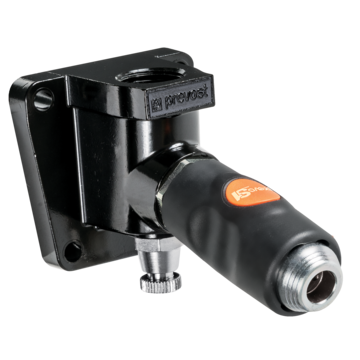

Female thread one port wall bracket - 1 coupler and drain - British Profile
Female thread one port wall bracket - 1 coupler and drain - British Profile
Flow rate
750 l/min (P = 6 bar, ΔP = 0.6 bar)
Material
Composite
Max. output pressure
12 bar
Sécurité
Safety
Temperature
-15°C to 70°C
ID passage
6 mm
Type of filling
Valved
Plus de références
Reference
Net weight (kg)
Female thread
Profile
BSI 061103WK

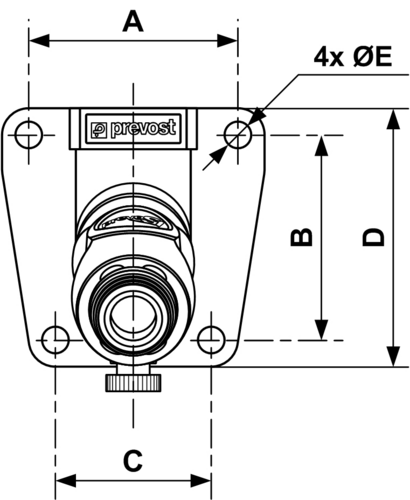

Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
BSI 061103WK
51
50
38
63
6.5
