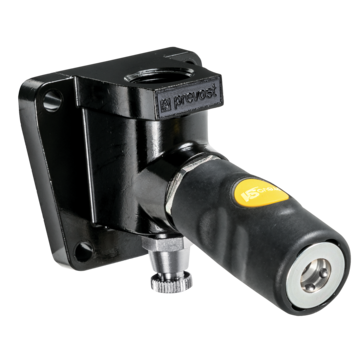

2618_ASI_061103WF
3D

Female thread one port wall bracket - 1 coupler and drain - ARO 210 Profile

Disconnection
Button
Material
Composite
Output pressure
2 to 12bar
Sécurité
Safety
Temperature
-15°C to 70°C
ID passage
6 mm
Type of filling
Valved

Plus de références

Reference
Net weight (kg)
Flow rate
Female thread
Profile
ASI 061103WK

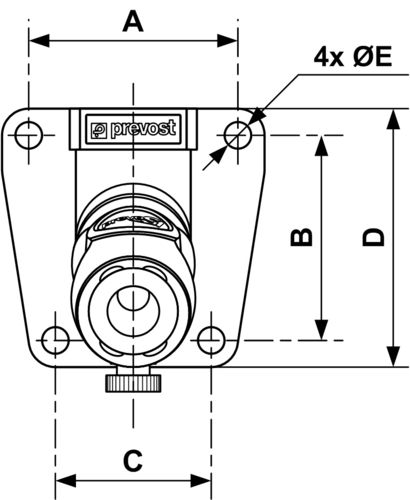

Dimensions

ASI_061_WK
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
ASI 061103WK
51
50
38
63
6.5
Reference Net weight (kg) Flow rate Female thread Profile 3D
ASI 061103WK 0,45 Kg 800 l/min (P = 6 bar, ΔP = 0.6 bar) G1/2 ARO 210 3D

Dimensions

Reference A mm B mm C mm D mm E mm
ASI 061103WK 51 50 38 63 6.5
ASI_061_WK
