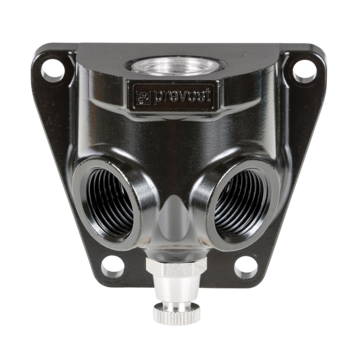

Female thread double wall bracket - Outlet 2 couplers and drain
Female thread double wall bracket - Outlet 2 couplers and drain
Net weight (kg)
0,492
Material
Aluminium
Max. output pressure
16.00 bar
Female thread
G1/2
Temperature
-20.00°C to 80.00°C
Description
Reference
Net weight (kg)
Material
Max. output pressure
Female thread
Temperature
MF 103S2
MF 104S2

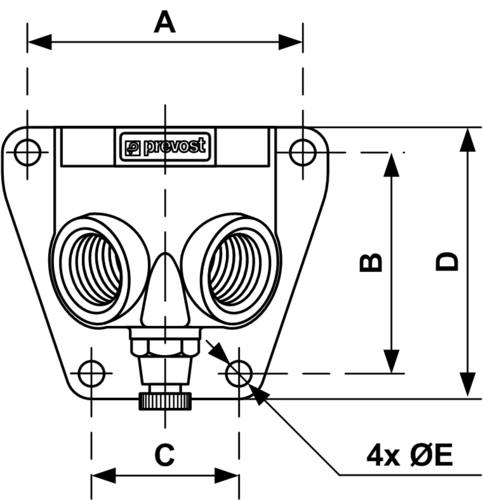

Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
MF 103S2
71
57
38
70
6.5
MF 104S2
71
57
38
70
6.5
Dimensions
| Reference | A mm | B mm | C mm | D mm | E mm |
|---|---|---|---|---|---|
| MF 103S2 | 71 | 57 | 38 | 70 | 6.5 |
| MF 104S2 | 71 | 57 | 38 | 70 | 6.5 |
