Female thread double port wall bracket - 2 couplers and drain - ISO 6150 B Profile

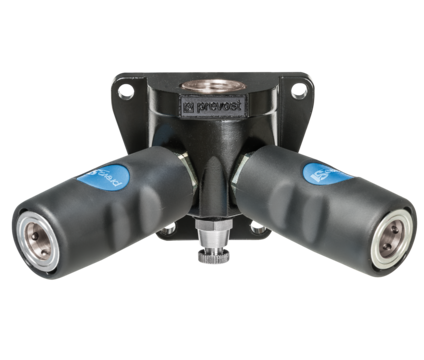

2390_ISI_088100WF
2390_ISI_088100WF
Net weight (kg)
0,82
Flow rate
2028.00 l/min (P = 6.00 bar ,ΔP = 0.60 bar)
Disconnection
Button
Material
Composite
Max. output pressure
12.00 bar
Security
Safety
Female thread
G1/2
Temperature
-15.00°C to 70.00°C
ID passage
8 mm
Profile
ISO 6150B
Type of filling
Valved

Description

Reference
Net weight (kg)
Flow rate
Disconnection
Material
Max. output pressure
Security
Female thread
Temperature
ID passage
Profile
Type of filling
ISI 088103WK
ISI 088104WK

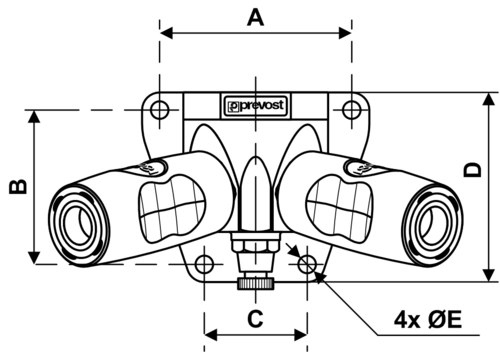

Dimensions

ISI_088_WK
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
ISI 088103WK
71
57
38
70
6.5
ISI 088104WK
71
57
38
70
6.5

Description

Reference Net weight (kg) Flow rate Disconnection Material Max. output pressure Security Female thread Temperature ID passage Profile Type of filling 3D
ISI 088103WK 0,82 2028.00 l/min (P = 6.00 bar ,ΔP = 0.60 bar) Button Composite 12.00 bar Safety G1/2 -15.00°C to 70.00°C 8 mm ISO 6150B Valved 3D
ISI 088104WK 0,762 2028.00 l/min (P = 6.00 bar ,ΔP = 0.60 bar) Button Composite 12.00 bar Safety G3/4 -15.00°C to 70.00°C 8 mm ISO 6150B Valved 3D

Dimensions

Reference A mm B mm C mm D mm E mm
ISI 088103WK 71 57 38 70 6.5
ISI 088104WK 71 57 38 70 6.5
ISI_088_WK
