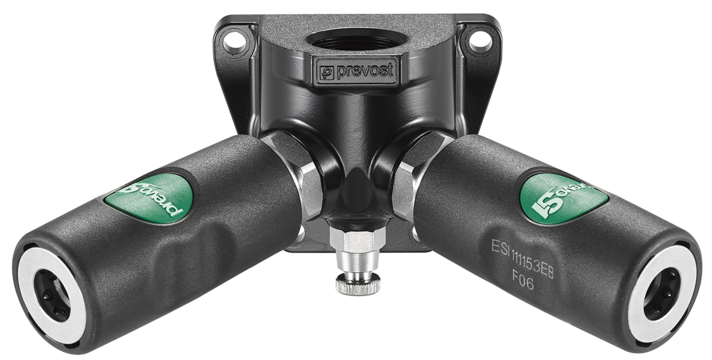

Female thread double port wall bracket - 2 couplers and drain - European Profile

3534_ESI_118104EWK
3534_ESI_118104EWK
Net weight (kg)
0,679
Flow rate
3530.00 l/min (P = 6.00 bar ,ΔP = 0.60 bar)
Disconnection
Button
Material
Polyamide
Max. output pressure
12.00 bar
Security
Safety
Female thread
G3/4
Temperature
-15.00°C to 70.00°C
ID passage
10.4 mm
Profile
EUROPEAN
Type of filling
Valved

Description

Reference
Net weight (kg)
Flow rate
Disconnection
Material
Max. output pressure
Security
Female thread
Temperature
ID passage
Profile
Type of filling
ESI 118104EWK

Dimensions

Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
ESI 118104EWK
71
51
38
70
6.5

Description

Reference Net weight (kg) Flow rate Disconnection Material Max. output pressure Security Female thread Temperature ID passage Profile Type of filling 3D
ESI 118104EWK 0,679 3530.00 l/min (P = 6.00 bar ,ΔP = 0.60 bar) Button Polyamide 12.00 bar Safety G3/4 -15.00°C to 70.00°C 10.4 mm EUROPEAN Valved 3D
