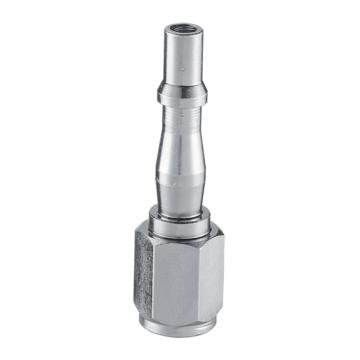

Female thread adaptor
Net weight (kg)
0,026
Material
Steel
Security
Safety
Female thread
G1/4
ID passage
6 mm
Profile
BRITISH
Type of filling
Straight-through
Description
Reference
Net weight (kg)
Material
Security
Female thread
ID passage
Profile
Type of filling
BRP 066101
BRP 066102

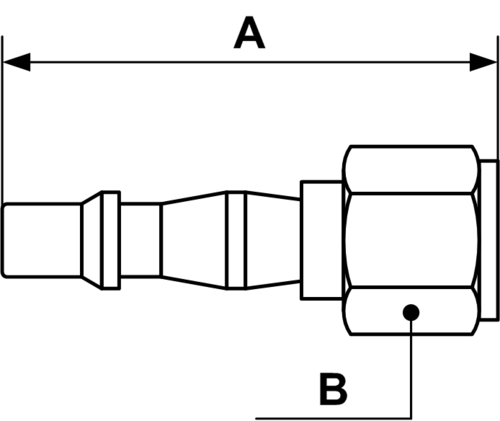

Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
BRP 066101
53
17
BRP 066102
57
21
Dimensions
| Reference | A mm | B mm |
|---|---|---|
| BRP 066101 | 53 | 17 |
| BRP 066102 | 57 | 21 |
