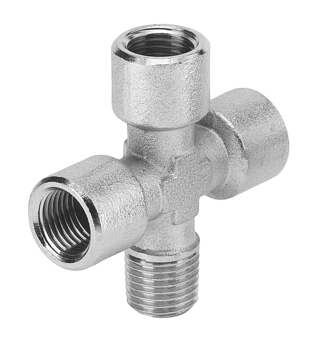

Equal cross with tapered male centre leg / parallel female - A34
Equal cross with tapered male centre leg / parallel female - A34
Material
Brass
Max. output pressure
15 bar
Plus de références
Reference
Net weight (kg)
Male thread
Female thread
A34 1818
A34 1414
A34 3838
A34 1212
Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
A34 1818
39.5
21
10
31.5
13
A34 1414
49
25.5
13
38
17
A34 3838
54
28
17
42.5
21
A34 1212
64.5
33.5
21
50.5
26.5
| Reference | Net weight (kg) | Male thread | Female thread | 3D |
|---|---|---|---|---|
| A34 1818 | 0,033 Kg | R1/8 | G1/8 | |
| A34 1414 | 0,057 Kg | R1/4 | G1/4 | |
| A34 3838 | 0,091 Kg | R3/8 | G3/8 | |
| A34 1212 | 0,175 Kg | R1/2 | G1/2 |
Dimensions
| Reference | A mm | B mm | C mm | D mm | E mm |
|---|---|---|---|---|---|
| A34 1818 | 39.5 | 21 | 10 | 31.5 | 13 |
| A34 1414 | 49 | 25.5 | 13 | 38 | 17 |
| A34 3838 | 54 | 28 | 17 | 42.5 | 21 |
| A34 1212 | 64.5 | 33.5 | 21 | 50.5 | 26.5 |
