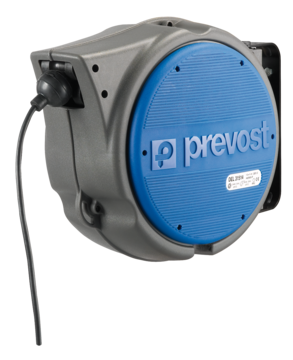

Electrical cable reel

Net weight (kg)

Lenght

14.00 m

Power

1.00 KW

Section =

3 G x 1,5 mm²

Temperature

-5.00°C to 40.00°C

Reference

Net weight (kg)

Lenght

Power

Section =

Temperature

DEL 31514

DEL 32520

Reference

A (mm)

B (mm)

C (mm)

D (mm)

E (mm)

DEL 31514

375

290

130

DEL 32520

490

380

160

Reference	Net weight (kg)	Lenght	Power	Section =	Temperature	3D
DEL 31514	5	14.00 m	1.00 KW	3 G x 1,5 mm²	-5.00°C to 40.00°C
DEL 32520	10,292	17.00 m	2.00 KW	3 G x 2,5 mm²	-5.00°C to 40.00°C

Reference	A mm	B mm	C mm
DEL 31514	375	290	130
DEL 32520	490	380	160
