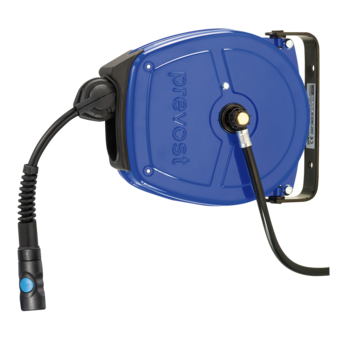

DSF Series - Small - Polyurethane hose polyester base
Net weight (kg)
3,1
Flow rate
650.00 l/min
Ø ext. (mm)
11.00
Ø int. (mm)
8.00
Lenght
5.00 m
Max. output pressure
12.00 bar
Temperature
-15.00°C to 40.00°C
ID passage
6 mm
Profile
BRITISH
Description
Reference
Net weight (kg)
Flow rate
Ø ext. (mm)
Ø int. (mm)
Lenght
Max. output pressure
Temperature
ID passage
Profile
DSF 0805BS
DSF 0805CS
DSF 0805ES
DSF 0805IS
DSF 0805US
DSF 1003BS
DSF 1003CS
DSF 1003ES
DSF 1003IS
DSF 1003US

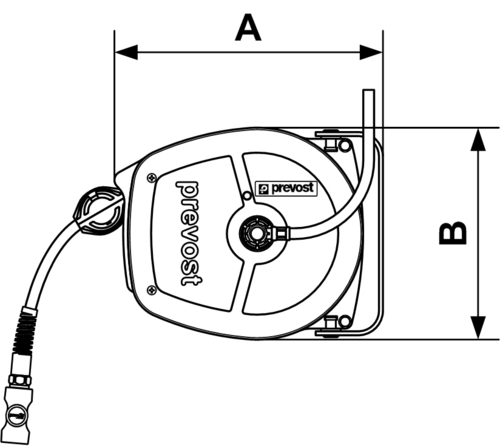

Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
DSF 0805BS
275
218
DSF 0805CS
275
218
DSF 0805ES
275
218
DSF 0805IS
275
218
DSF 0805US
275
218
DSF 1003BS
275
218
DSF 1003CS
275
218
DSF 1003ES
275
218
DSF 1003IS
275
218
DSF 1003US
275
218
Description
Dimensions
| Reference | A mm | B mm |
|---|---|---|
| DSF 0805BS | 275 | 218 |
| DSF 0805CS | 275 | 218 |
| DSF 0805ES | 275 | 218 |
| DSF 0805IS | 275 | 218 |
| DSF 0805US | 275 | 218 |
| DSF 1003BS | 275 | 218 |
| DSF 1003CS | 275 | 218 |
| DSF 1003ES | 275 | 218 |
| DSF 1003IS | 275 | 218 |
| DSF 1003US | 275 | 218 |
