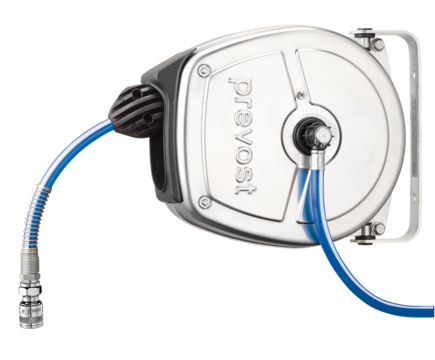

DSF/I series - 304 stainless steel - Polyurethane braided hose with ether base

Net weight (kg)

3,2

Ø ext. (mm)

12.00

Ø int. (mm)

8.00

Lenght

5.00 m

Max. output pressure

10.00 bar

Temperature

-15.00°C to 70.00°C

ID passage

9 mm

Profile

WATER

Reference

Net weight (kg)

Ø ext. (mm)

Ø int. (mm)

Lenght

Max. output pressure

Temperature

ID passage

Profile

DSFI 0805LS

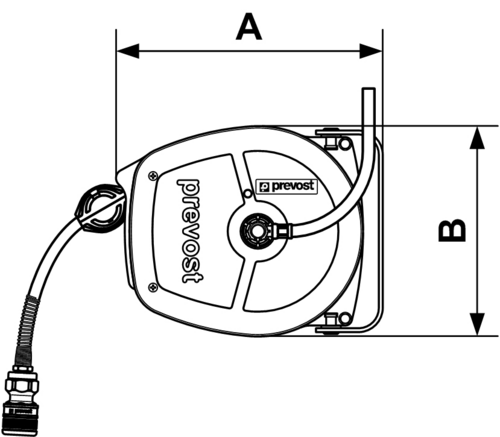

Reference

A (mm)

B (mm)

C (mm)

D (mm)

E (mm)

DSFI 0805LS

275

218

Reference	Net weight (kg)	Ø ext. (mm)	Ø int. (mm)	Lenght	Max. output pressure	Temperature	ID passage	Profile	3D
DSFI 0805LS	3,2	12.00	8.00	5.00 m	10.00 bar	-15.00°C to 70.00°C	9 mm	WATER

Reference	A mm	B mm
DSFI 0805LS	275	218
