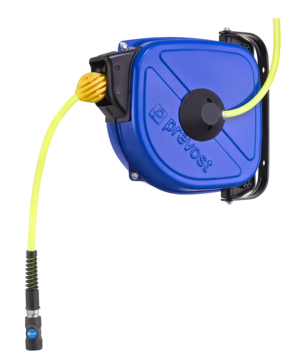

DRFB - SECURITY : Hose reel w/ safety retraction - PU/PVC Hose

DRFB
DRFB
Flow rate
500.00 l/min
Ø ext. (mm)
12.00
Ø int. (mm)
8.00
Lenght
12.00 m
Max. output pressure
12.00 bar
Temperature
-15.00°C to 65.00°C
ID passage
6 mm
Profile
British

Description

Reference
Flow rate
Ø ext. (mm)
Ø int. (mm)
Lenght
Max. output pressure
Temperature
ID passage
Profile
DRFB 0812BS
DRFB 0812ES
DRFB 0812AS
DRFB 0812IS
DRFB 0812CS
DRFB 0815CS
DRFB 0815ES
DRFB 0815IS
DRFB 0812US
DRFB 1010ES
DRFB 0815AS
DRFB 1010IS
DRFB 0815BS
DRFB 1012ES
DRFB 1012IS
DRFB 0815US
DRFB 1010AS
DRFB 1010BS
DRFB 1010CS
DRFB 1010US
DRFB 1012AS
DRFB 1012BS
DRFB 1012CS
DRFB 1012US

Dimensions

Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
DRFB 0812BS
340
302
DRFB 0812ES
340
302
DRFB 0812AS
340
302
DRFB 0812IS
340
302
DRFB 0812CS
340
302
DRFB 0815CS
370
337
DRFB 0815ES
370
337
DRFB 0815IS
370
337
DRFB 0812US
340
302
DRFB 1010ES
340
302
DRFB 0815AS
370
337
DRFB 1010IS
340
302
DRFB 0815BS
370
337
DRFB 1012ES
370
337
DRFB 1012IS
370000
337
DRFB 0815US
370
337
DRFB 1010AS
340
302
DRFB 1010BS
340
302
DRFB 1010CS
340
302
DRFB 1010US
340
302
DRFB 1012AS
370
337
DRFB 1012BS
370
337
DRFB 1012CS
370
337
DRFB 1012US
370
337

Description

Reference Flow rate Ø ext. (mm) Ø int. (mm) Lenght Max. output pressure Temperature ID passage Profile 3D
DRFB 0812BS 500.00 l/min 12.00 8.00 12.00 m 12.00 bar -15.00°C to 65.00°C 6 mm British 3D
DRFB 0812ES 500.00 l/min 12.00 8.00 12.00 m 12.00 bar -15.00°C to 65.00°C 7.4 mm European 3D
DRFB 0812AS 500.00 l/min 12.00 8.00 12.00 m 12.00 bar -15.00°C to 65.00°C 6 mm ARO 210 3D
DRFB 0812IS 500.00 l/min 12.00 8.00 12.00 m 12.00 bar -15.00°C to 65.00°C 6 mm ISO 6150B 3D
DRFB 0812CS 500.00 l/min 12.00 8.00 12.00 m 12.00 bar -15.00°C to 65.00°C 6 mm ISO 6150C 3D
DRFB 0815CS 350.00 l/min 12.00 8.00 15.00 m 12.00 bar -15.00°C to 65.00°C 6 mm ISO 6150C 3D
DRFB 0815ES 350.00 l/min 12.00 8.00 15.00 m 12.00 bar -15.00°C to 65.00°C 7.4 mm European 3D
DRFB 0815IS 350.00 l/min 12.00 8.00 15.00 m 12.00 bar -15.00°C to 65.00°C 6 mm ISO 6150B 3D
DRFB 0812US 500.00 l/min 12.00 8.00 12.00 m 12.00 bar -15.00°C to 65.00°C 6 mm Truflate 3D
DRFB 1010ES 900.00 l/min 14.00 10.00 10.00 m 12.00 bar -15.00°C to 65.00°C 7.4 mm European 3D
DRFB 0815AS 350.00 l/min 12.00 8.00 15.00 m 12.00 bar -15.00°C to 65.00°C 6 mm ARO 210 3D
DRFB 1010IS 833.00 l/min 14.00 10.00 10.00 m 12.00 bar -15.00°C to 65.00°C 6 mm ISO 6150B 3D
DRFB 0815BS 350.00 l/min 12.00 8.00 15.00 m 12.00 bar -15.00°C to 65.00°C 6 mm British 3D
DRFB 1012ES 800.00 l/min 14.00 10.00 12.00 m 12.00 bar -15.00°C to 65.00°C 7.4 mm European 3D
DRFB 1012IS 800.00 l/min 14.00 10.00 12.00 m 12.00 bar -15.00°C to 65.00°C 6 mm ISO 6150B 3D
DRFB 0815US 350.00 l/min 12.00 8.00 15.00 m 12.00 bar -15.00°C to 65.00°C 6 mm Truflate 3D
DRFB 1010AS 800.00 l/min 14.00 10.00 10.00 m 12.00 bar -15.00°C to 65.00°C 6 mm ARO 210 3D
DRFB 1010BS 750.00 l/min 14.00 10.00 10.00 m 12.00 bar -15.00°C to 65.00°C 6 mm British 3D
DRFB 1010CS 833.00 l/min 14.00 10.00 10.00 m 12.00 bar -15.00°C to 65.00°C 6 mm ISO 6150C 3D
DRFB 1010US 833.00 l/min 14.00 10.00 10.00 m 12.00 bar -15.00°C to 65.00°C 6 mm Truflate 3D
DRFB 1012AS 800.00 l/min 14.00 10.00 12.00 m 12.00 bar -15.00°C to 65.00°C 6 mm ARO 210 3D
DRFB 1012BS 750.00 l/min 14.00 10.00 12.00 m 12.00 bar -15.00°C to 65.00°C 6 mm British 3D
DRFB 1012CS 800.00 l/min 14.00 10.00 12.00 m 12.00 bar -15.00°C to 65.00°C 6 mm ISO 6150C 3D
DRFB 1012US 800.00 l/min 14.00 10.00 12.00 m 12.00 bar -15.00°C to 65.00°C 6 mm Truflate 3D
