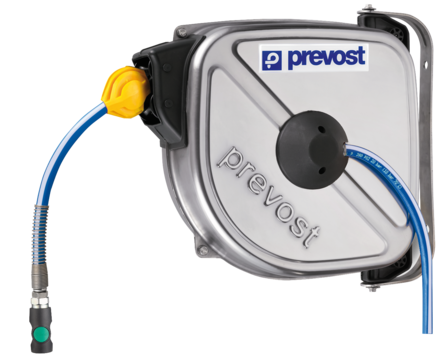

DRFB/I Serie - Hose reel w/ safety retraction - Stainless steel - Polyurethane hose Ether base
DRFB/I Serie - Hose reel w/ safety retraction - Stainless steel - Polyurethane hose Ether base
Net weight (kg)
7,14
Flow rate
800.00 l/min
Ø ext. (mm)
14.00
Ø int. (mm)
10.00
Lenght
12.00 m
Max. output pressure
12.00 bar
Temperature
-15.00°C to 65.00°C
ID passage
7.4 mm
Profile
EUROPEAN
Description
Reference
Net weight (kg)
Flow rate
Ø ext. (mm)
Ø int. (mm)
Lenght
Max. output pressure
Temperature
ID passage
Profile
DRFINB 1012ESHE
Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
DRFINB 1012ESHE
370
337
Description
| Reference | Net weight (kg) | Flow rate | Ø ext. (mm) | Ø int. (mm) | Lenght | Max. output pressure | Temperature | ID passage | Profile | 3D |
|---|---|---|---|---|---|---|---|---|---|---|
| DRFINB 1012ESHE | 7,14 | 800.00 l/min | 14.00 | 10.00 | 12.00 m | 12.00 bar | -15.00°C to 65.00°C | 7.4 mm | EUROPEAN |
