DRF Series - Medium - Economy type - Outer hose: PU/PVC - Inner: PU polyester base

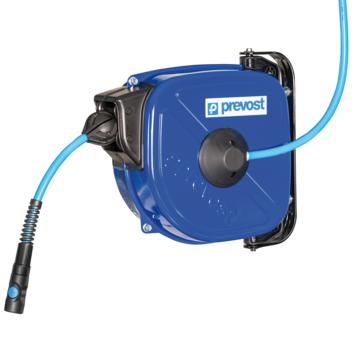

1397_DRF_ISI
1397_DRF_ISI
Net weight (kg)
5,8
Flow rate
500.00 l/min
Ø ext. (mm)
12.00
Ø int. (mm)
8.00
Lenght
12.00 m
Max. output pressure
12.00 bar
Temperature
-15.00°C to 65.00°C
ID passage
6 mm
Profile
BRITISH

Description

Reference
Net weight (kg)
Flow rate
Ø ext. (mm)
Ø int. (mm)
Lenght
Max. output pressure
Temperature
ID passage
Profile
DRF 0812BS
DRF 0812CS
DRF 0812ES
DRF 0812IS
DRF 0812US
DRF 0815BS
DRF 0815CS
DRF 0815ES
DRF 0815IS
DRF 0815US
DRF 1010BS
DRF 1010CS
DRF 1010ES
DRF 1010IS
DRF 1010US
DRF 1012BS
DRF 1012CS
DRF 1012ES
DRF 1012IS
DRF 1012US
DRF 1015BS
DRF 1015ES
DRF 1015IS

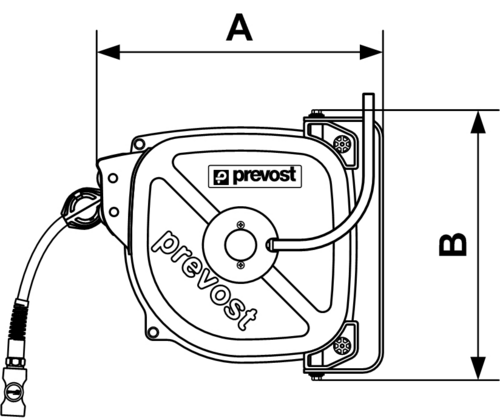

Dimensions

DRF_IS
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
DRF 0812BS
340
302
DRF 0812CS
340
302
DRF 0812ES
340
302
DRF 0812IS
340
302
DRF 0812US
340
302
DRF 0815BS
340
337
DRF 0815CS
370
337
DRF 0815ES
370
337
DRF 0815IS
370
337
DRF 0815US
370
337
DRF 1010BS
340
302
DRF 1010CS
340
302
DRF 1010ES
340
302
DRF 1010IS
340
302
DRF 1010US
340
302
DRF 1012BS
370
337
DRF 1012CS
370
337
DRF 1012ES
370
337
DRF 1012IS
370
337
DRF 1012US
370
337
DRF 1015BS
370
337
DRF 1015ES
370
337
DRF 1015IS
370
337

Description

Reference Net weight (kg) Flow rate Ø ext. (mm) Ø int. (mm) Lenght Max. output pressure Temperature ID passage Profile 3D
DRF 0812BS 5,8 500.00 l/min 12.00 8.00 12.00 m 12.00 bar -15.00°C to 65.00°C 6 mm BRITISH 3D
DRF 0812CS 5,907 500.00 l/min 12.00 8.00 12.00 m 12.00 bar -15.00°C to 65.00°C 6 mm ISO 6150C 3D
DRF 0812ES 6 500.00 l/min 12.00 8.00 12.00 m 12.00 bar -15.00°C to 65.00°C 7.4 mm EUROPEAN 3D
DRF 0812IS 5,96 500.00 l/min 12.00 8.00 12.00 m 12.00 bar -15.00°C to 65.00°C 6 mm ISO 6150B 3D
DRF 0812US 500.00 l/min 12.00 8.00 12.00 m 12.00 bar -15.00°C to 65.00°C 6 mm TRUFLATE 3D
DRF 0815BS 7,1 350.00 l/min 12.00 8.00 15.00 m 12.00 bar -15.00°C to 65.00°C 6 mm BRITISH
DRF 0815CS 7 350.00 l/min 12.00 8.00 15.00 m 12.00 bar -15.00°C to 65.00°C 6 mm ISO 6150C 3D
DRF 0815ES 7 350.00 l/min 12.00 8.00 15.00 m 12.00 bar -15.00°C to 65.00°C 7.4 mm EUROPEAN 3D
DRF 0815IS 6,95 350.00 l/min 12.00 8.00 15.00 m 12.00 bar -15.00°C to 65.00°C 6 mm ISO 6150B 3D
DRF 0815US 7,6 350.00 l/min 12 8 15.00 m 12.00 bar 6 TRUFLATE 3D
DRF 1010BS 5,7 750.00 l/min 14.00 10.00 10.00 m 12.00 bar -15.00°C to 65.00°C 6 mm BRITISH 3D
DRF 1010CS 5,8 833.00 l/min 14.00 10.00 10.00 m 12.00 bar -15.00°C to 65.00°C 6 mm ISO 6150C 3D
DRF 1010ES 5,797 900.00 l/min 14.00 10.00 10.00 m 12.00 bar -15.00°C to 65.00°C 7.4 mm EUROPEAN 3D
DRF 1010IS 5,8 833.00 l/min 14.00 10.00 10.00 m 12.00 bar -15.00°C to 65.00°C 6 mm ISO 6150B 3D
DRF 1010US 833.00 l/min 14.00 10.00 10.00 m 12.00 bar -15.00°C to 65.00°C 6 mm TRUFLATE 3D
DRF 1012BS 6,8 800.00 l/min 14.00 10.00 12.00 m 12.00 bar -15.00°C to 65.00°C 6 mm BRITISH
DRF 1012CS 6,62 800.00 l/min 14.00 10.00 12.00 m 12.00 bar -15.00°C to 65.00°C 6 mm ISO 6150C 3D
DRF 1012ES 6,75 800.00 l/min 14.00 10.00 12.00 m 12.00 bar -15.00°C to 65.00°C 7.4 mm EUROPEAN 3D
DRF 1012IS 6,6 800.00 l/min 14.00 10.00 12.00 m 12.00 bar -15.00°C to 65.00°C 6 mm ISO 6150B 3D
DRF 1012US 800.00 l/min 14.00 10.00 12.00 m 12.00 bar -15.00°C to 65.00°C 6 mm TRUFLATE
DRF 1015BS 7,2 800.00 l/min 14.00 10.00 15.00 m 12.00 bar -15.00°C to 65.00°C 6 mm BRITISH
DRF 1015ES 7,2 800.00 l/min 14.00 10.00 15.00 m 12.00 bar -15.00°C to 65.00°C 7.4 mm EUROPEAN 3D
DRF 1015IS 7,2 800.00 l/min 14.00 10.00 15.00 m 12.00 bar -15.00°C to 65.00°C 6 mm ISO 6150B 3D

Dimensions

Reference A mm B mm
DRF 0812BS 340 302
DRF 0812CS 340 302
DRF 0812ES 340 302
DRF 0812IS 340 302
DRF 0812US 340 302
DRF 0815BS 340 337
DRF 0815CS 370 337
DRF 0815ES 370 337
DRF 0815IS 370 337
DRF 0815US 370 337
DRF 1010BS 340 302
DRF 1010CS 340 302
DRF 1010ES 340 302
DRF 1010IS 340 302
DRF 1010US 340 302
DRF 1012BS 370 337
DRF 1012CS 370 337
DRF 1012ES 370 337
DRF 1012IS 370 337
DRF 1012US 370 337
DRF 1015BS 370 337
DRF 1015ES 370 337
DRF 1015IS 370 337
DRF_IS
