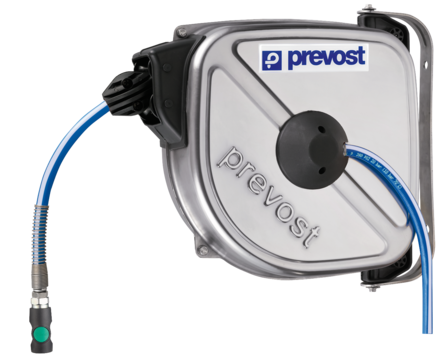

DRF/I series - 304 stainless steel - Polyurethane hose Ether base

1895_DRFI_ESHE
1895_DRFI_ESHE
Net weight (kg)
6,5
Flow rate
800.00 l/min
Ø ext. (mm)
14.00
Ø int. (mm)
10.00
Lenght
12.00 m
Max. output pressure
12.00 bar
Temperature
-15.00°C to 65.00°C
ID passage
7.4 mm
Profile
EUROPEAN

Description

Reference
Net weight (kg)
Flow rate
Ø ext. (mm)
Ø int. (mm)
Lenght
Max. output pressure
Temperature
ID passage
Profile
DRFI 1012ESHE

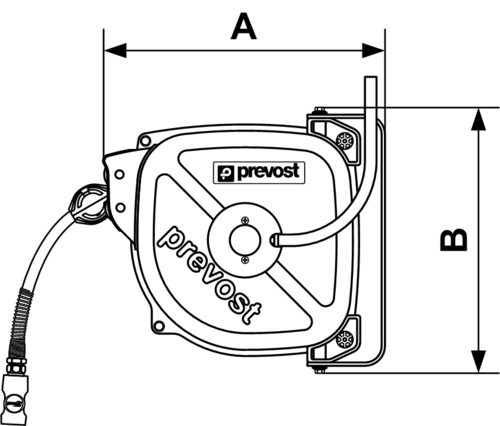

Dimensions

DRFI
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
DRFI 1012ESHE
370
337

Description

Reference Net weight (kg) Flow rate Ø ext. (mm) Ø int. (mm) Lenght Max. output pressure Temperature ID passage Profile 3D
DRFI 1012ESHE 6,5 800.00 l/min 14.00 10.00 12.00 m 12.00 bar -15.00°C to 65.00°C 7.4 mm EUROPEAN 3D

Dimensions

Reference A mm B mm
DRFI 1012ESHE 370 337
DRFI
