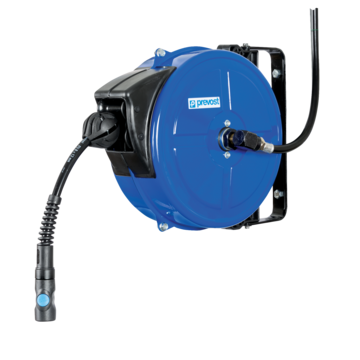

DMF Series - Industrial type - Polyurethane hose
Net weight (kg)
6,37
Flow rate
500.00 l/min
Ø ext. (mm)
12.00
Ø int. (mm)
8.00
Lenght
12.00 m
Max. output pressure
12.00 bar
Female thread
G3/8
Temperature
-15.00°C to 40.00°C
ID passage
6 mm
Profile
ISO 6150C
Description
Reference
Net weight (kg)
Flow rate
Ø ext. (mm)
Ø int. (mm)
Lenght
Max. output pressure
Female thread
Temperature
ID passage
Profile
DMF 0812CS
DMF 0812ES
DMF 0812IS

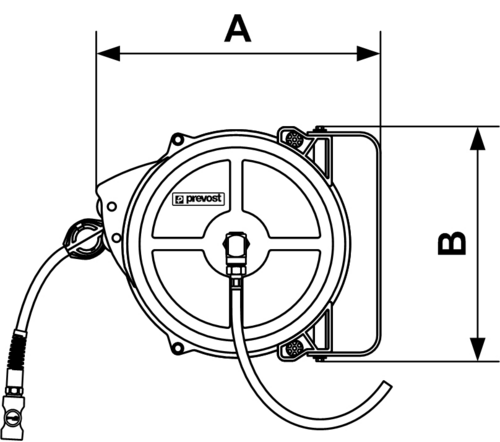

Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
DMF 0812CS
350
287
DMF 0812ES
350
287
DMF 0812IS
350
287
Description
Dimensions
| Reference | A mm | B mm |
|---|---|---|
| DMF 0812CS | 350 | 287 |
| DMF 0812ES | 350 | 287 |
| DMF 0812IS | 350 | 287 |
