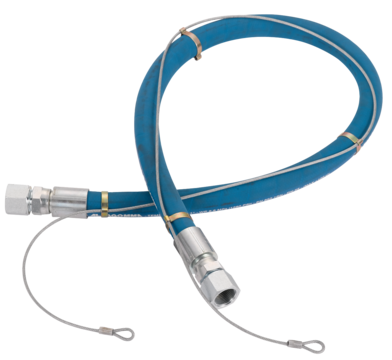

Connection hoses with steel safety cable - Female swivel connections
Connection hoses with steel safety cable - Female swivel connections
Net weight (kg)
0,945
Lenght
1.50 m
Max. output pressure
180.00 bar
Female thread
G3/8
Temperature
-40.00°C to 110.00°C
Description
Reference
Net weight (kg)
Lenght
Max. output pressure
Female thread
Temperature
LEF 17S
LEF 21S
LEF 27S
LEF 34S
Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
LEF 17S
LEF 21S
LEF 27S
LEF 34S
Description
| Reference | Net weight (kg) | Lenght | Max. output pressure | Female thread | Temperature | 3D |
|---|---|---|---|---|---|---|
| LEF 17S | 0,945 | 1.50 m | 180.00 bar | G3/8 | -40.00°C to 110.00°C | |
| LEF 21S | 1,205 | 1.50 m | 160.00 bar | G1/2 | -40.00°C to 110.00°C | |
| LEF 27S | 1,764 | 1.50 m | 105.00 bar | G3/4 | -40.00°C to 110.00°C | |
| LEF 34S | 2,789 | 1.50 m | 88.00 bar | G1 | -40.00°C to 110.00°C |
