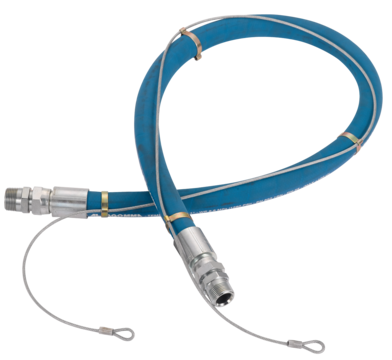

Connection hoses with safety cable - Male swivel connections
Connection hoses with safety cable - Male swivel connections
Net weight (kg)
0,927
Male thread
R3/8
Lenght
1.50 m
Max. output pressure
180.00 bar
Temperature
-40.00°C to 110.00°C
Description
Reference
Net weight (kg)
Male thread
Lenght
Max. output pressure
Temperature
LEM 17S
LEM 21S
LEM 27S
LEM 34S
Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
LEM 17S
LEM 21S
LEM 27S
LEM 34S
Description
| Reference | Net weight (kg) | Male thread | Lenght | Max. output pressure | Temperature | 3D |
|---|---|---|---|---|---|---|
| LEM 17S | 0,927 | R3/8 | 1.50 m | 180.00 bar | -40.00°C to 110.00°C | |
| LEM 21S | 1,2 | R1/2 | 1.50 m | 160.00 bar | -40.00°C to 110.00°C | |
| LEM 27S | 1,777 | R3/4 | 1.50 m | 105.00 bar | -40.00°C to 110.00°C | |
| LEM 34S | 2,783 | R1 | 1.50 m | 88.00 bar | -40.00°C to 110.00°C |
