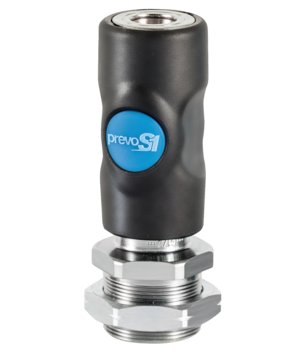

Bulkhead coupler
Net weight (kg)
0,19
Flow rate
833.00 l/min (P = 6.00 bar ,ΔP = 0.60 bar)
Disconnection
Button
Material
Composite
Max. output pressure
12.00 bar
Security
Safety
Female thread
G1/4
Temperature
-15.00°C to 70.00°C
ID passage
6 mm
Profile
ISO 6150B
Type of filling
Valved
Description
Reference
Net weight (kg)
Flow rate
Disconnection
Material
Max. output pressure
Security
Female thread
Temperature
ID passage
Profile
Type of filling
ISI 062101

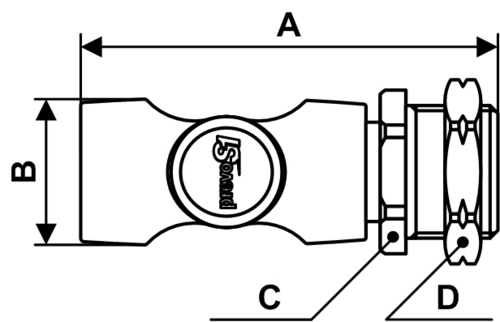

Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
ISI 062101
84
30
29
32
Description
Dimensions
| Reference | A mm | B mm | C mm | D mm |
|---|---|---|---|---|
| ISI 062101 | 84 | 30 | 29 | 32 |
