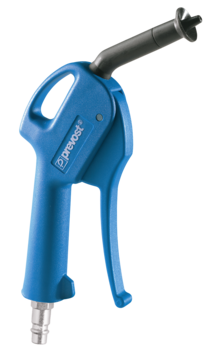

Blow gun with protective air curtain
Nozzle
Air curtain
Material
Polyamide
Sound level
82 DBA
Max. output pressure
10 bar
ID passage
6 mm
Plus de références
Reference
Net weight (kg)
Flow rate
Profile
27102 EC6I
27102 EC7E
27102 EC6B
27102 EC6C
27102 EC6A
Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
27102 EC6I
27102 EC7E
27102 EC6B
27102 EC6C
27102 EC6A
| Reference | Net weight (kg) | Flow rate | Profile |
|---|---|---|---|
| 27102 EC6I | 0.143 Kg | 450 l/min (P = 6 bar) | ISO 6150B |
| 27102 EC7E | 0.143 Kg | 450 l/min (P = 6 bar) | EUROPEAN |
| 27102 EC6B | 0.149 Kg | 450 l/min (P = 6 bar) | BRITISH |
| 27102 EC6C | 0.147 Kg | 450 l/min (P = 6 bar) | ISO 6150C |
| 27102 EC6A | 0.142 Kg | 450 l/min (P = 6 bar) | ARO 210 |
