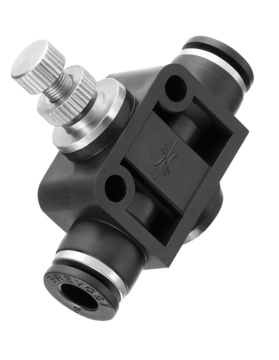

Bidirectional regulator - Tube/Tube - RPO ET
Material
Polymer
Max. output pressure
10 bar
Max. temperature
60 °C
Plus de références
Reference
Net weight (kg)
Ø ext. (mm)
Pour tube Ø ext.
RPO ET0404
RPO ET0606
RPO ET0808
RPO ET1010
RPO ET1212
Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
RPO ET0404
48
31
RPO ET0606
49
46
RPO ET0808
55.1
50
RPO ET1010
63
53
RPO ET1212
75
63
| Reference | Net weight (kg) | Ø ext. (mm) | Pour tube Ø ext. | 3D |
|---|---|---|---|---|
| RPO ET0404 | 0,014 Kg | 4 mm | 4 mm | |
| RPO ET0606 | 0,031 Kg | 6 mm | 6 mm | |
| RPO ET0808 | 0,042 Kg | 8 mm | 8 mm | |
| RPO ET1010 | 0,067 Kg | 10 mm | 10 mm | |
| RPO ET1212 | 0,121 Kg | 12 mm | 12 mm |
Dimensions
| Reference | A mm | B mm |
|---|---|---|
| RPO ET0404 | 48 | 31 |
| RPO ET0606 | 49 | 46 |
| RPO ET0808 | 55.1 | 50 |
| RPO ET1010 | 63 | 53 |
| RPO ET1212 | 75 | 63 |
