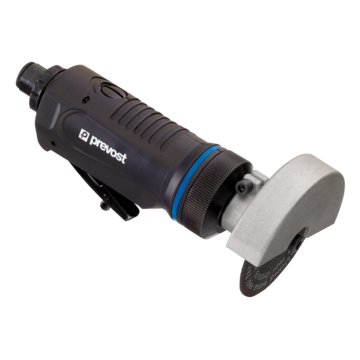

Air cut-off tool
Net weight (kg)
1,022
Flow rate
113.00 l/min
Level sound
87.00 DBA
Max. output pressure
6.20 bar
Power
370 KW
Female thread
R1/4
Speed of rotation
20000.00 RPM
Description
Reference
Net weight (kg)
Flow rate
Level sound
Max. output pressure
Power
Female thread
Speed of rotation
TCS 20000

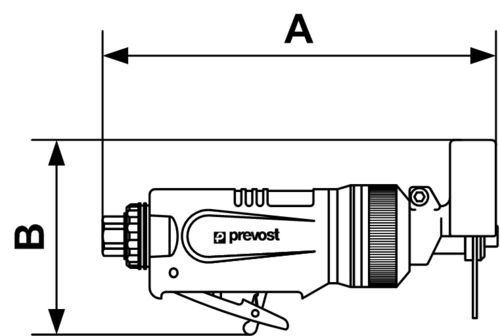

Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
TCS 20000
180
90
Description
| Reference | Net weight (kg) | Flow rate | Level sound | Max. output pressure | Power | Female thread | Speed of rotation | 3D |
|---|---|---|---|---|---|---|---|---|
| TCS 20000 | 1,022 | 113.00 l/min | 87.00 DBA | 6.20 bar | 370 KW | R1/4 | 20000.00 RPM |
Dimensions
| Reference | A mm | B mm |
|---|---|---|
| TCS 20000 | 180 | 90 |
Supports & documentation
Here you will find the general catalogue, product documentation, safety data sheets, technical manuals and documents related to our spare parts.
