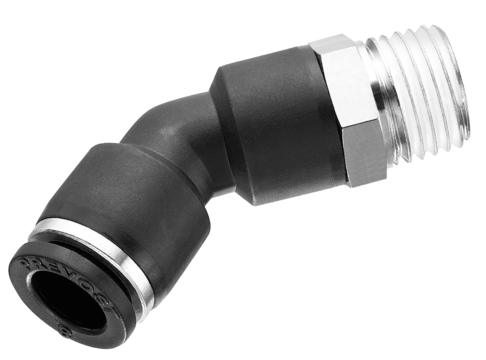

Tapered male 135° elbow - RPQ MR
Net weight (kg)
0,008
Ø ext. (mm)
4.00
Male thread
R1/8
Material
Polymer
Max. output pressure
10.00 bar
Temperature
0.00°C to 60.00°C
For pipe OD
4 mm
Description
Reference
Net weight (kg)
Ø ext. (mm)
Male thread
Material
Max. output pressure
Temperature
For pipe OD
RPQ MR0400
RPQ MR0401
RPQ MR0500
RPQ MR0501
RPQ MR0502
RPQ MR0503
RPQ MR0600
RPQ MR0601
RPQ MR0602
RPQ MR0603
RPQ MR0800
RPQ MR0801
RPQ MR0802
RPQ MR0803
RPQ MR1000
RPQ MR1001
RPQ MR1002
RPQ MR1003
RPQ MR1201
RPQ MR1202
RPQ MR1203
Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
RPQ MR0400
39.4
14.5
10
31.9
10
RPQ MR0401
40.9
14.5
14
31.9
10
RPQ MR0500
43
16.5
12
35.5
12.8
RPQ MR0501
44.5
16.5
14
35.5
12.8
RPQ MR0502
47
16.5
17
36
12.8
RPQ MR0503
49.5
16.5
21
36.5
12.8
RPQ MR0600
43
16.5
12
35.5
12.8
RPQ MR0601
44.5
16.5
14
35.5
12.8
RPQ MR0602
47
16.5
17
36
12.8
RPQ MR0603
49.5
16.5
21
36.5
12.8
RPQ MR0800
46
19
14
38.5
13.8
RPQ MR0801
47.5
19
14
38.5
13.8
RPQ MR0802
50
19
17
39
13.8
RPQ MR0803
52.5
19
21
39.5
13.8
RPQ MR1000
51.3
22
17
43.8
16.8
RPQ MR1001
52.8
22
17
43.8
16.8
RPQ MR1002
54.8
22
17
43.8
16.8
RPQ MR1003
57.3
22
21
44.3
16.8
RPQ MR1201
55.5
23
19
46.5
19.8
RPQ MR1202
58
23
19
47
19.8
RPQ MR1203
60
23
21
47
19.8
Description
| Reference | Net weight (kg) | Ø ext. (mm) | Male thread | Material | Max. output pressure | Temperature | For pipe OD | 3D |
|---|---|---|---|---|---|---|---|---|
| RPQ MR0400 | 0,008 | 4.00 | R1/8 | Polymer | 10.00 bar | 0.00°C to 60.00°C | 4 mm | |
| RPQ MR0401 | 0,013 | 4.00 | R1/4 | Polymer | 10.00 bar | 0.00°C to 60.00°C | 4 mm | |
| RPQ MR0500 | 0,012 | 5.00 | R1/8 | Polymer | 10.00 bar | 0.00°C to 60.00°C | 5 mm | |
| RPQ MR0501 | 0,014 | 5.00 | R1/4 | Polymer | 10.00 bar | 0.00°C to 60.00°C | 5 mm | |
| RPQ MR0502 | 0,02 | 5.00 | R3/8 | Polymer | 10.00 bar | 0.00°C to 60.00°C | 5 mm | |
| RPQ MR0503 | 0,034 | 5.00 | R1/2 | Polymer | 10.00 bar | 0.00°C to 60.00°C | 5 mm | |
| RPQ MR0600 | 0,012 | 6.00 | R1/8 | Polymer | 10.00 bar | 0.00°C to 60.00°C | 6 mm | |
| RPQ MR0601 | 0,015 | 6.00 | R1/4 | Polymer | 10.00 bar | 0.00°C to 60.00°C | 6 mm | |
| RPQ MR0602 | 0,02 | 6.00 | R3/8 | Polymer | 10.00 bar | 0.00°C to 60.00°C | 6 mm | |
| RPQ MR0603 | 0,03 | 6.00 | R1/2 | Polymer | 10.00 bar | 0.00°C to 60.00°C | 6 mm | |
| RPQ MR0800 | 0,015 | 8.00 | R1/8 | Polymer | 10.00 bar | 0.00°C to 60.00°C | 8 mm | |
| RPQ MR0801 | 0,015 | 8.00 | R1/4 | Polymer | 10.00 bar | 0.00°C to 60.00°C | 8 mm | |
| RPQ MR0802 | 0,021 | 8.00 | R3/8 | Polymer | 10.00 bar | 0.00°C to 60.00°C | 8 mm | |
| RPQ MR0803 | 0,034 | 8.00 | R1/2 | Polymer | 10.00 bar | 0.00°C to 60.00°C | 8 mm | |
| RPQ MR1000 | 0,022 | 10.00 | R1/8 | Polymer | 10.00 bar | 0.00°C to 60.00°C | 10 mm | |
| RPQ MR1001 | 0,024 | 10.00 | R1/4 | Polymer | 10.00 bar | 0.00°C to 60.00°C | 10 mm | |
| RPQ MR1002 | 0,026 | 10.00 | R3/8 | Polymer | 10.00 bar | 0.00°C to 60.00°C | 10 mm | |
| RPQ MR1003 | 0,037 | 10.00 | R1/2 | Polymer | 10.00 bar | 0.00°C to 60.00°C | 10 mm | |
| RPQ MR1201 | 0,033 | 12.00 | R1/4 | Polymer | 10.00 bar | 0.00°C to 60.00°C | 12 mm | |
| RPQ MR1202 | 0,036 | 12.00 | R3/8 | Polymer | 10.00 bar | 0.00°C to 60.00°C | 12 mm | |
| RPQ MR1203 | 0,044 | 12.00 | R1/2 | Polymer | 10.00 bar | 0.00°C to 60.00°C | 12 mm |
Dimensions
| Reference | A mm | B mm | C mm | D mm | E mm |
|---|---|---|---|---|---|
| RPQ MR0400 | 39.4 | 14.5 | 10 | 31.9 | 10 |
| RPQ MR0401 | 40.9 | 14.5 | 14 | 31.9 | 10 |
| RPQ MR0500 | 43 | 16.5 | 12 | 35.5 | 12.8 |
| RPQ MR0501 | 44.5 | 16.5 | 14 | 35.5 | 12.8 |
| RPQ MR0502 | 47 | 16.5 | 17 | 36 | 12.8 |
| RPQ MR0503 | 49.5 | 16.5 | 21 | 36.5 | 12.8 |
| RPQ MR0600 | 43 | 16.5 | 12 | 35.5 | 12.8 |
| RPQ MR0601 | 44.5 | 16.5 | 14 | 35.5 | 12.8 |
| RPQ MR0602 | 47 | 16.5 | 17 | 36 | 12.8 |
| RPQ MR0603 | 49.5 | 16.5 | 21 | 36.5 | 12.8 |
| RPQ MR0800 | 46 | 19 | 14 | 38.5 | 13.8 |
| RPQ MR0801 | 47.5 | 19 | 14 | 38.5 | 13.8 |
| RPQ MR0802 | 50 | 19 | 17 | 39 | 13.8 |
| RPQ MR0803 | 52.5 | 19 | 21 | 39.5 | 13.8 |
| RPQ MR1000 | 51.3 | 22 | 17 | 43.8 | 16.8 |
| RPQ MR1001 | 52.8 | 22 | 17 | 43.8 | 16.8 |
| RPQ MR1002 | 54.8 | 22 | 17 | 43.8 | 16.8 |
| RPQ MR1003 | 57.3 | 22 | 21 | 44.3 | 16.8 |
| RPQ MR1201 | 55.5 | 23 | 19 | 46.5 | 19.8 |
| RPQ MR1202 | 58 | 23 | 19 | 47 | 19.8 |
| RPQ MR1203 | 60 | 23 | 21 | 47 | 19.8 |
