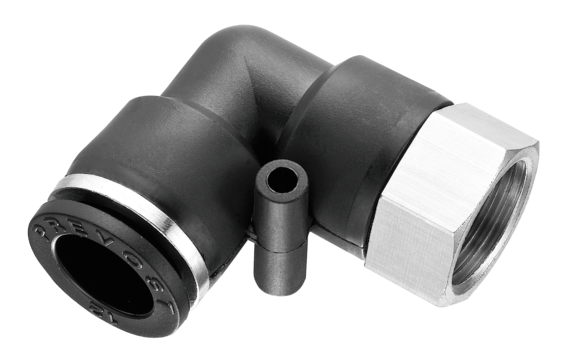

Tapered female 90° elbow - RPC FR
Net weight (kg)
0,065
Material
Polymer
Max. output pressure
10.00 bar
Female thread
NPT1/2
Temperature
0.00°C to 60.00°C
Description
Reference
Net weight (kg)
Material
Max. output pressure
Female thread
Temperature
Max. temperature
RPC FR2123
RPC FR3120
RPC FR3121
RPC FR3821
RPC FR3822
RPC FR4120
RPC FR4121
RPC FR5120
RPC FR5121
RPC FR5122
RPC FR5320
Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
RPC FR2123
41.2
18
1
28.4
20.5
RPC FR3120
27
11
1
20.5
12.8
RPC FR3121
30
14
11
20.5
12.8
RPC FR3821
33.2
14
11
26.3
16.8
RPC FR3822
34.2
15
7
26.3
16.8
RPC FR4120
27
11
1
20.5
12.8
RPC FR4121
30
14
11
20.5
12.8
RPC FR5120
28.7
11
9
22.5
13.8
RPC FR5121
29.7
14
11
22.5
13.8
RPC FR5122
32.7
15
7
22.5
13.8
RPC FR5320
24.5
11
1
17.5
10
Description
| Reference | Net weight (kg) | Material | Max. output pressure | Female thread | Temperature | Max. temperature | 3D |
|---|---|---|---|---|---|---|---|
| RPC FR2123 | 0,065 | Polymer | 10.00 bar | NPT1/2 | 0.00°C to 60.00°C | ||
| RPC FR3120 | 10 bar | 1/8" NPT | 60 °C | ||||
| RPC FR3121 | 10 bar | 1/4" NPT | 60 °C | ||||
| RPC FR3821 | 0,032 | 10 bar | 1/4" NPT | 60 °C | |||
| RPC FR3822 | 10 bar | 3/8" NPT | 60 °C | ||||
| RPC FR4120 | 0,014 | 10 bar | 1/8" NPT | 60 °C | |||
| RPC FR4121 | 0,023 | 10 bar | 1/4" NPT | 60 °C | |||
| RPC FR5120 | 10 bar | 1/8" NPT | 60 °C | ||||
| RPC FR5121 | 10 bar | 1/4" NPT | 60 °C | ||||
| RPC FR5122 | 10 bar | 3/8" NPT | 60 °C | ||||
| RPC FR5320 | 10 bar | 1/8" NPT | 60 °C |
Dimensions
| Reference | A mm | B mm | C mm | D mm | E mm |
|---|---|---|---|---|---|
| RPC FR2123 | 41.2 | 18 | 1 | 28.4 | 20.5 |
| RPC FR3120 | 27 | 11 | 1 | 20.5 | 12.8 |
| RPC FR3121 | 30 | 14 | 11 | 20.5 | 12.8 |
| RPC FR3821 | 33.2 | 14 | 11 | 26.3 | 16.8 |
| RPC FR3822 | 34.2 | 15 | 7 | 26.3 | 16.8 |
| RPC FR4120 | 27 | 11 | 1 | 20.5 | 12.8 |
| RPC FR4121 | 30 | 14 | 11 | 20.5 | 12.8 |
| RPC FR5120 | 28.7 | 11 | 9 | 22.5 | 13.8 |
| RPC FR5121 | 29.7 | 14 | 11 | 22.5 | 13.8 |
| RPC FR5122 | 32.7 | 15 | 7 | 22.5 | 13.8 |
| RPC FR5320 | 24.5 | 11 | 1 | 17.5 | 10 |
