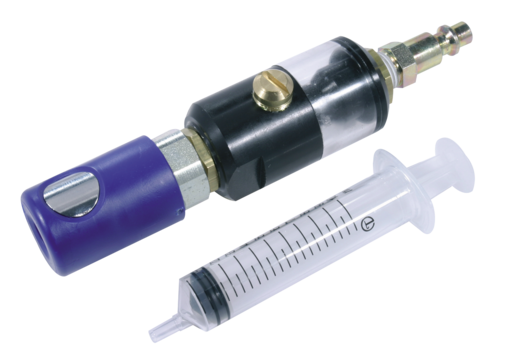

Sealed LUB'AIR assembly with several profiles
Net weight (kg)
0,089
Description
Reference
Net weight (kg)
Temperature
ID passage
Profile
LUBAIR 14F
LUBAIR 6000
LUBAIR 7000
LUBAIR 8000
Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
LUBAIR 14F
68
33
19
0
LUBAIR 6000
151
33
23
14
LUBAIR 7000
163
33
23
14
LUBAIR 8000
183
33
25
17
Description
| Reference | Net weight (kg) | Temperature | ID passage | Profile | 3D |
|---|---|---|---|---|---|
| LUBAIR 14F | 0,089 | ||||
| LUBAIR 6000 | 0,258 | -15.00°C to 70.00°C | 6 mm | ISO 6150B | |
| LUBAIR 7000 | 0,29 | -15.00°C to 70.00°C | 7.4 mm | EUROPEAN | |
| LUBAIR 8000 | 0,346 | -15.00°C to 70.00°C | 8 mm | ISO 6150B |

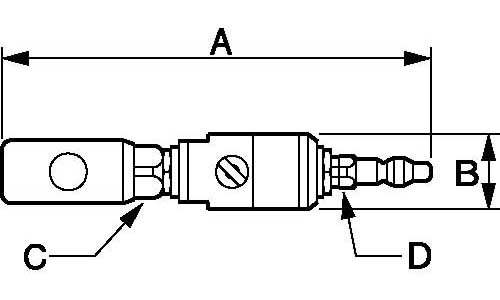

Dimensions
| Reference | A mm | B mm | C mm | D mm |
|---|---|---|---|---|
| LUBAIR 14F | 68 | 33 | 19 | 0 |
| LUBAIR 6000 | 151 | 33 | 23 | 14 |
| LUBAIR 7000 | 163 | 33 | 23 | 14 |
| LUBAIR 8000 | 183 | 33 | 25 | 17 |
