Flexibles de liaison entre le réseau et l'enrouleur

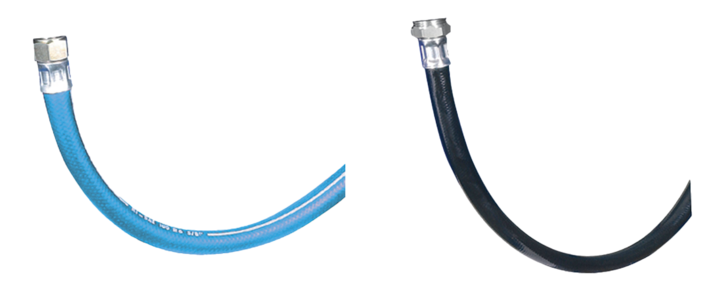

Replacement whip hoses for hose reels - Length 1 m
Net weight (kg)
0,135
Compatibility
DMF 0810; DPF 0812
Ø ext. (mm)
12
Ø int. (mm)
8
Female thread
G 3/8
Description
Reference
Net weight (kg)
Compatibility
Ø ext. (mm)
Ø int. (mm)
Female thread
DMG 0161
DMG 0305
DMG 0448
DMG 0448LPU
DMG 0449
DMG 0449LPU
DMG T0801L
DMG T1001L
DMG T1301L
DMG T1601KL
DMG T1601L
DMG TF1301
DMG TF1601K
DMG TF1901
DMG TF1901K
Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
DMG 0161
DMG 0305
DMG 0448
DMG 0448LPU
DMG 0449
DMG 0449LPU
DMG T0801L
DMG T1001L
DMG T1301L
DMG T1601KL
DMG T1601L
DMG TF1301
DMG TF1601K
DMG TF1901
DMG TF1901K
Description
| Reference | Net weight (kg) | Compatibility | Ø ext. (mm) | Ø int. (mm) | Female thread | 3D |
|---|---|---|---|---|---|---|
| DMG 0161 | 0,135 | DMF 0810; DPF 0812 | 12 | 8 | G 3/8 | |
| DMG 0305 | 0,143 | DPF 1010; DVO 1025 | 15 | 10 | G 3/8 | |
| DMG 0448 | 0,12 | DRF 0812 -; DRFB 0812 ; DSF 0805 | 12 | 8 | ||
| DMG 0448LPU | 0,104 | DSFIN 0805 | 12 | 8 | ||
| DMG 0449 | 0,126 | DRF 1010 -; DRFB 1010 ; DSF 1003 | 14 | 10 | ||
| DMG 0449LPU | 0,121 | DRFIN 1012; DRFINB 101 | 14 | 10 | ||
| DMG T0801L | 0,203 | DGF 0810 -; DMO 810 - | 14 | 8 | G 3/8 | |
| DMG T1001L | 0,228 | DGF 1010 -; DGO 1020 -; DMO 1010 - | 17 | 10 | G 3/8 | |
| DMG T1301L | 0,355 | DGF 1310; DGO 1320; DMO 1315 | 20 | 13 | G1/2 | |
| DMG T1601KL | 0,47 | DGO 1615LS; DGOI 1615L; DMO 1610LS; DMOI 1610L | 24 | 16 | G1/2 | |
| DMG T1601L | 0,415 | DGO 1610; DMO 1610 | 23 | 16 | G1/2 | |
| DMG TF1301 | 0,397 | DLO 1330 | 20 | 13 | G1/2 | |
| DMG TF1601K | 0,476 | DLO 1625LS; DLOI 1625L | 24 | 16 | G1/2 | |
| DMG TF1901 | 0,697 | DLO 1920 | 27 | 19 | G1/2 | |
| DMG TF1901K | 0,71 | DLO 1920LS; DLOI 1920L | 28 | 19 | G1/2 |
