3637_ATU R10101
3D

Regulator

Max. output pressure
15 bar

Plus de références

Reference
Net weight (kg)
Flow rate
BSPT male thread
Outlet working pressure
Female thread
ATU R10100
ATU R10101
ATU R10102
ATU R10103

Dimensions

ATU R
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
ATU R10100
40
121.5
ATU R10101
40
121.5
ATU R10102
62
185
ATU R10103
62
185
Reference Net weight (kg) Flow rate BSPT male thread Outlet working pressure Female thread 3D
ATU R10100 0,339 Kg 750 l/min (P = 6 bar, ΔP = 1 bar) G1/8 0.5 to 15BAR G1/8 3D
ATU R10101 0,339 Kg 1500 l/min (P = 6 bar, ΔP = 1 bar) G1/4 0.5 to 15BAR G1/4 3D
ATU R10102 0,926 Kg 4300 l/min (P = 6 bar, ΔP = 1 bar) G3/8 0.5 to 15BAR G3/8 3D
ATU R10103 0.926 Kg 4700 l/min (P = 6 bar, ΔP = 1 bar) G1/2 0.5 to 15BAR G1/2 3D

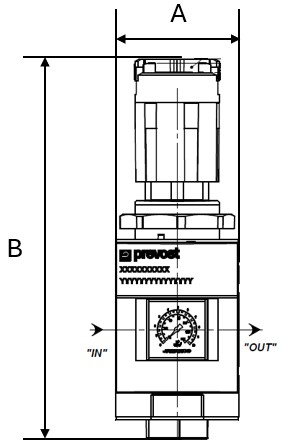

Dimensions

Reference A mm B mm
ATU R10100 40 121.5
ATU R10101 40 121.5
ATU R10102 62 185
ATU R10103 62 185
ATU R
