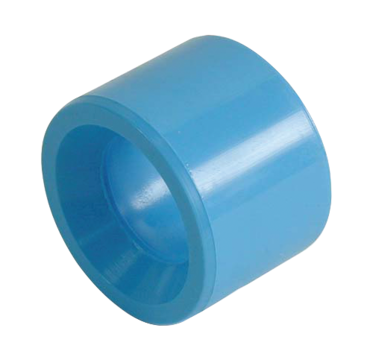

PVR RDD - PVC Double reducer tube / fittings
Net weight (kg)
0,0143
Material
PVC
Max. output pressure
13.00 bar
Temperature
-20.00°C to 50.00°C
For pipe OD
32 mm; 20 mm mm
Description
Reference
Net weight (kg)
Material
Max. output pressure
Temperature
For pipe OD
PVR RDD3220
PVR RDD4025
PVR RDD5032
PVR RDD6340
Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
PVR RDD3220
32
22
PVR RDD4025
32
22
PVR RDD5032
40
26
PVR RDD6340
50
31
Description
| Reference | Net weight (kg) | Material | Max. output pressure | Temperature | For pipe OD | 3D |
|---|---|---|---|---|---|---|
| PVR RDD3220 | 0,0143 | PVC | 13.00 bar | -20.00°C to 50.00°C | 32 mm; 20 mm mm | |
| PVR RDD4025 | 0,026 | PVC | 13.00 bar | -20.00°C to 50.00°C | 40 mm; 25 mm mm | |
| PVR RDD5032 | 0,04 | PVC | 13.00 bar | -20.00°C to 50.00°C | 50 mm; 32 mm mm | |
| PVR RDD6340 | 0,076 | PVC | 13.00 bar | -20.00°C to 50.00°C | 63 mm; 40 mm mm |

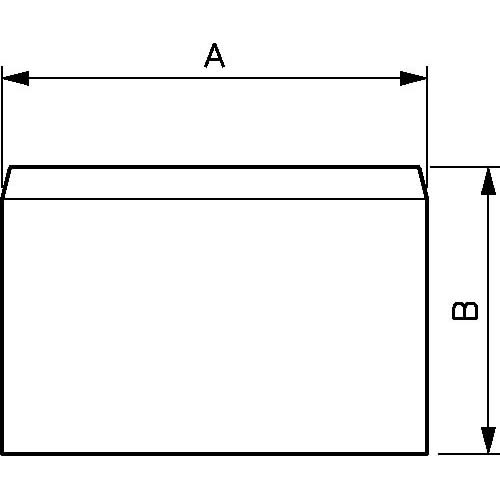

Dimensions
| Reference | A mm | B mm |
|---|---|---|
| PVR RDD3220 | 32 | 22 |
| PVR RDD4025 | 32 | 22 |
| PVR RDD5032 | 40 | 26 |
| PVR RDD6340 | 50 | 31 |
