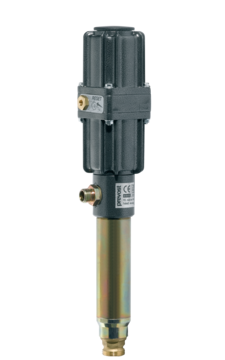

Pump for 180/220 litre oil drums
Net weight (kg)
2,86
Flow rate
20.00 l/min
Male thread
G1/2
Outlet working pressure
12.00 to 28.00BAR
Max. output pressure
7.00 bar
Female thread
G 1/2
Description
Reference
Net weight (kg)
Flow rate
Male thread
Outlet working pressure
Max. output pressure
Female thread
Lenght
EPH MR220
EPH PR220

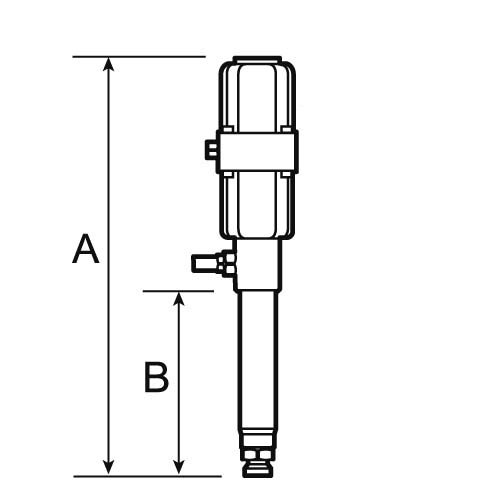

Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
EPH MR220
445
175
EPH PR220
1210
940
Dimensions
| Reference | A mm | B mm |
|---|---|---|
| EPH MR220 | 445 | 175 |
| EPH PR220 | 1210 | 940 |
