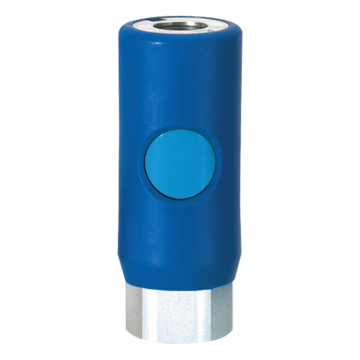

Female coupler

Net weight (kg)

0,162

Flow rate

69.00 CFM (P = 87.00 PSI ,ΔP = 8.69 PSI)

ID passage

3/8"

Output pressure

0.00 to 174.00°F

Profile

INDUSTRIAL

Female thread

NPT1/4

Temperature

5.00°F to 158.00°F

Description

Reference

Net weight (kg)

Flow rate

Disconnection

Material

Max. output pressure

Female thread

Temperature

ID passage

Profile

Type of filling

IRC 081101

IRC 081102

IRC 081103

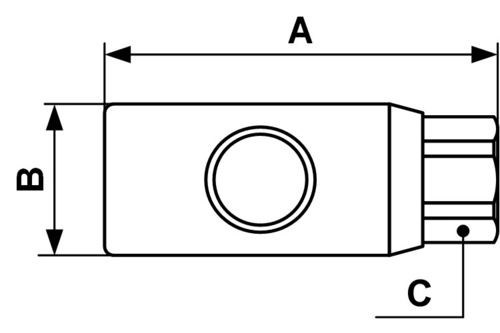

Dimensions

Reference

A (mm)

B (mm)

C (mm)

D (mm)

E (mm)

IRC 081101

83.5

IRC 081102

84.5

IRC 081103

93.5

Description

Reference	Net weight (kg)	Flow rate	Disconnection	Material	Max. output pressure	Female thread	Temperature	ID passage	Profile	Type of filling
IRC 081101	0,159	1950.00 l/min (P = 6.00 bar ,ΔP = 0.60 bar)	Button	Composite	12.00 bar	G1/4	-15.00°C to 70.00°C	8 mm	ISO 6150B	Valved
IRC 081102	0,155	1950.00 l/min (P = 6.00 bar ,ΔP = 0.60 bar)	Button	Composite	12.00 bar	G3/8	-15.00°C to 70.00°C	8 mm	ISO 6150B	Valved
IRC 081103	0,16	1950.00 l/min (P = 6.00 bar ,ΔP = 0.60 bar)	Button	Composite	12.00 bar	G1/2	-15.00°C to 70.00°C	8 mm	ISO 6150B	Valved

Dimensions

Reference	A mm	B mm	C mm
IRC 081101	83.5	33	25
IRC 081102	84.5	33	25
IRC 081103	93.5	33	25
