prevoS1 blow gun with silent nozzle

prevoS1 coupler sold separately: BSI 06
Blowing force (at 6 bar (g))
165
Dynamic pressure (at 10 mm at 6 bar (bar))
0.2
Air consumption (at 6 bar (Nm3/h))
9.4
Sound level (at 6 bar (dBA))
74
Profile
British
Max operating pressure
12 bar
Temperature
-15°C to +70°C
Construction
Polyamide composite body
Highlight
Compact
Connection
Built-in adaptor

Description

Reference
Blowing force (at 6 bar (g))
Dynamic pressure (at 10 mm at 6 bar (bar))
Air consumption (at 6 bar (Nm3/h))
Sound level (at 6 bar (dBA))
BBG 06SIL

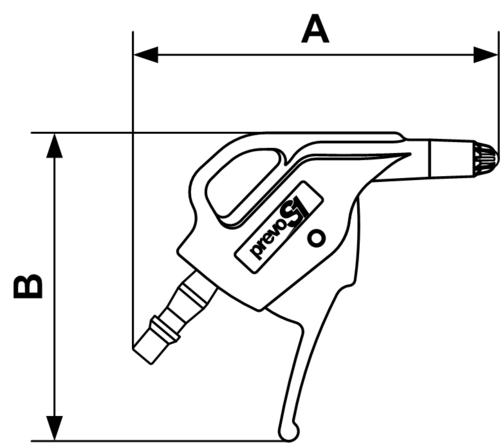

Dimensions

Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
BBG 06SIL
118
97

Description

Reference Blowing force (at 6 bar (g)) Dynamic pressure (at 10 mm at 6 bar (bar)) Air consumption (at 6 bar (Nm3/h)) Sound level (at 6 bar (dBA)) 3D
BBG 06SIL 165 0.2 9.4 74 3D

Dimensions

Reference A mm B mm
BBG 06SIL 118 97
