PPS1 UNS - Aluminium female sliding union for pipe
Net weight (kg)
5,54
Material
Aluminium
Max. output pressure
16.00 bar
Temperature
-20.00°C to 80.00°C
For pipe OD
100 mm mm
Numéro d'image
2.
Description
Reference
Net weight (kg)
Material
Max. output pressure
Temperature
For pipe OD
Numéro d'image
PPS1 UNS100
PPS1 UNS25
PPS1 UNS32
PPS1 UNS40
PPS1 UNS50
PPS1 UNS63
PPS1 UNS80

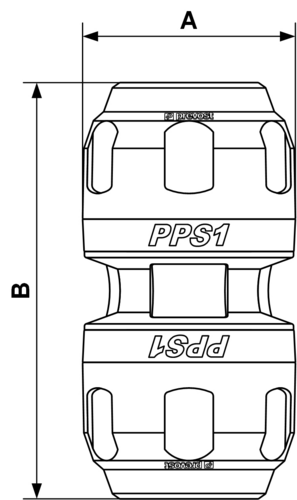

Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
PPS1 UNS100
211
295
PPS1 UNS25
46
90
PPS1 UNS32
57
106
PPS1 UNS40
68
125
PPS1 UNS50
84
152
PPS1 UNS63
100
173
PPS1 UNS80
121
205
Description
Dimensions
| Reference | A mm | B mm |
|---|---|---|
| PPS1 UNS100 | 211 | 295 |
| PPS1 UNS25 | 46 | 90 |
| PPS1 UNS32 | 57 | 106 |
| PPS1 UNS40 | 68 | 125 |
| PPS1 UNS50 | 84 | 152 |
| PPS1 UNS63 | 100 | 173 |
| PPS1 UNS80 | 121 | 205 |
