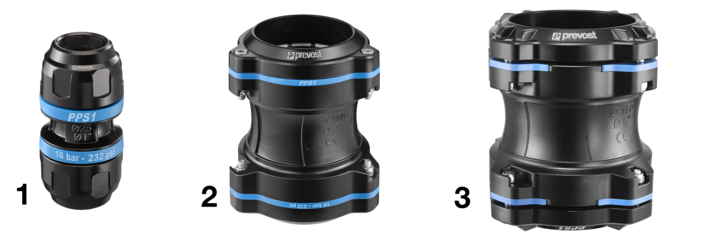

PPS1 UN - Aluminium female union for pipe

The PREVOST PIPING SYSTEM’s female unions for pipes are made of aluminum, compact, lightweight and easy to install. The product is durable, recyclable and can also be easily modified. Fittings are treated with an electrocoating process to protect them from corrosion.
Material
Aluminium
Max. output pressure
16 bar
Temperature
-20°C to 80°C

Plus de références

Reference
Net weight (kg)
Pour tube Ø ext.
Numéro d'image
PPS1 UN16
PPS1 UN20
PPS1 UN25
PPS1 UN32
PPS1 UN40
PPS1 UN50
PPS1 UN63
PPS1 UN80
PPS1 UN100
PPS1 UN160

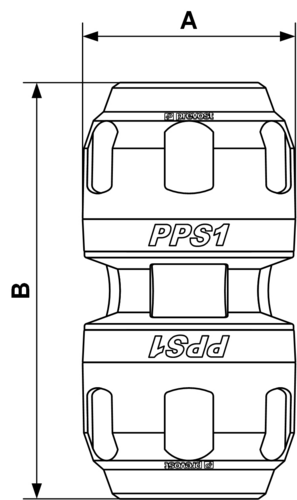

Dimensions

PPS1_UN
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
PPS1 UN16
32
64
PPS1 UN20
38
78
PPS1 UN25
46
90
PPS1 UN32
57
106
PPS1 UN40
68
125
PPS1 UN50
84
152
PPS1 UN63
100
173
PPS1 UN80
121
205
PPS1 UN100
153.5
191.5
PPS1 UN160
256
250
Reference Net weight (kg) Pour tube Ø ext. Numéro d'image 3D
PPS1 UN16 0,063 Kg 16 mm 1. 3D
PPS1 UN20 0.088 Kg 20 mm 1. 3D
PPS1 UN25 0.167 Kg 25 mm 1. 3D
PPS1 UN32 0.279 Kg 32 mm 1. 3D
PPS1 UN40 0.45 Kg 40 mm 1. 3D
PPS1 UN50 0.761 Kg 50 mm 1. 3D
PPS1 UN63 1.18 Kg 63 mm 1. 3D
PPS1 UN80 1,835 Kg 80 mm 1. 3D
PPS1 UN100 2.92 Kg 100 mm 2. 3D
PPS1 UN160 8.9 Kg 160 mm mm 3. 3D

Dimensions

Reference A mm B mm
PPS1 UN16 32 64
PPS1 UN20 38 78
PPS1 UN25 46 90
PPS1 UN32 57 106
PPS1 UN40 68 125
PPS1 UN50 84 152
PPS1 UN63 100 173
PPS1 UN80 121 205
PPS1 UN100 153.5 191.5
PPS1 UN160 256 250
