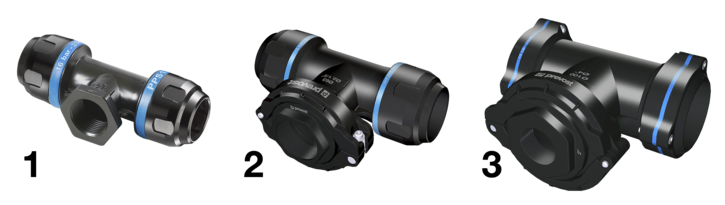

PPS1 TT - Aluminium parallel female thread tee fitting for pipe

PPS1_TT
PPS1_TT
Net weight (kg)
5,03
Material
Aluminium
Max. output pressure
16.00 bar
Female thread
G3
Temperature
-20.00°C to 80.00°C
For pipe OD
100 mm mm
Numéro d'image
3.

Description

Reference
Net weight (kg)
Material
Max. output pressure
Female thread
Temperature
For pipe OD
Numéro d'image
PPS1 TT10090
PPS1 TT1617
PPS1 TT2012
PPS1 TT2512
PPS1 TT2527
PPS1 TT3227
PPS1 TT3234
PPS1 TT4027
PPS1 TT4034
PPS1 TT4042
PPS1 TT5034
PPS1 TT5042
PPS1 TT5049
PPS1 TT6334
PPS1 TT6342
PPS1 TT6349
PPS1 TT6360
PPS1 TT8034
PPS1 TT8049
PPS1 TT8060
PPS1 TT8076

Dimensions

PPS1_TT
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
PPS1 TT10090
153.3
308.5
175
125
PPS1 TT1617
32
90
40
26
PPS1 TT2012
38
108
47
32
PPS1 TT2512
46
131
56
38
PPS1 TT2527
46
131
56
38
PPS1 TT3227
57
155
68
46
PPS1 TT3234
57
155
68
46
PPS1 TT4027
68
183
85
57
PPS1 TT4034
68
183
85
57
PPS1 TT4042
68
183
85
57
PPS1 TT5034
84
219
101
72
PPS1 TT5042
84
219
101
72
PPS1 TT5049
84
219
101
72
PPS1 TT6334
100
261
129
90
PPS1 TT6342
100
261
129
90
PPS1 TT6349
100
261
129
90
PPS1 TT6360
100
261
129
90
PPS1 TT8034
121
315
155
110
PPS1 TT8049
121
315
155
110
PPS1 TT8060
121
315
155
110
PPS1 TT8076
121
315
155
110

Description

Reference Net weight (kg) Material Max. output pressure Female thread Temperature For pipe OD Numéro d'image 3D
PPS1 TT10090 5,03 Aluminium 16.00 bar G3 -20.00°C to 80.00°C 100 mm mm 3.
PPS1 TT1617 0,089 Aluminium 16.00 bar G3/8 -20.00°C to 80.00°C 16 mm mm 1. 3D
PPS1 TT2012 0,126 Aluminium 16.00 bar G1/2 -20.00°C to 80.00°C 20 mm mm 1. 3D
PPS1 TT2512 0,246 Aluminium 16.00 bar G1/2 -20.00°C to 80.00°C 25 mm mm 1. 3D
PPS1 TT2527 0,235 Aluminium 16.00 bar G3/4 -20.00°C to 80.00°C 25 mm mm 1. 3D
PPS1 TT3227 0,401 Aluminium 16.00 bar G3/4 -20.00°C to 80.00°C 32 mm mm 1. 3D
PPS1 TT3234 0,38 Aluminium 16.00 bar G1 -20.00°C to 80.00°C 32 mm mm 1. 3D
PPS1 TT4027 0,69 Aluminium 16.00 bar G3/4 -20.00°C to 80.00°C 40 mm mm 1. 3D
PPS1 TT4034 0,67 Aluminium 16.00 bar G1 -20.00°C to 80.00°C 40 mm mm 1. 3D
PPS1 TT4042 0,615 Aluminium 16.00 bar G1 1/4 -20.00°C to 80.00°C 40 mm mm 1. 3D
PPS1 TT5034 1,2 Aluminium 16.00 bar G1 -20.00°C to 80.00°C 50 mm mm 1. 3D
PPS1 TT5042 1,13 Aluminium 16.00 bar G1 1/4 -20.00°C to 80.00°C 50 mm mm 1. 3D
PPS1 TT5049 1,1 Aluminium 16.00 bar G1 1/2 -20.00°C to 80.00°C 50 mm mm 2. 3D
PPS1 TT6334 2,17 Aluminium 16.00 bar G1 -20.00°C to 80.00°C 63 mm mm 1. 3D
PPS1 TT6342 2,12 Aluminium 16.00 bar G1 1/4 -20.00°C to 80.00°C 63 mm mm 1. 3D
PPS1 TT6349 2,07 Aluminium 16.00 bar G1 1/2 -20.00°C to 80.00°C 63 mm mm 2. 3D
PPS1 TT6360 1,92 Aluminium 16.00 bar G2 -20.00°C to 80.00°C 63 mm mm 2. 3D
PPS1 TT8034 3,45 Aluminium 16.00 bar G1 -20.00°C to 80.00°C 80 mm mm 1. 3D
PPS1 TT8049 3,35 Aluminium 16.00 bar G1 1/2 -20.00°C to 80.00°C 80 mm mm 1. 3D
PPS1 TT8060 3,2 Aluminium 16.00 bar G2 -20.00°C to 80.00°C 80 mm mm 2. 3D
PPS1 TT8076 2,98 Aluminium 16.00 bar G2 1/2 -20.00°C to 80.00°C 80 mm mm 2. 3D

Dimensions

Reference A mm B mm C mm D mm
PPS1 TT10090 153.3 308.5 175 125
PPS1 TT1617 32 90 40 26
PPS1 TT2012 38 108 47 32
PPS1 TT2512 46 131 56 38
PPS1 TT2527 46 131 56 38
PPS1 TT3227 57 155 68 46
PPS1 TT3234 57 155 68 46
PPS1 TT4027 68 183 85 57
PPS1 TT4034 68 183 85 57
PPS1 TT4042 68 183 85 57
PPS1 TT5034 84 219 101 72
PPS1 TT5042 84 219 101 72
PPS1 TT5049 84 219 101 72
PPS1 TT6334 100 261 129 90
PPS1 TT6342 100 261 129 90
PPS1 TT6349 100 261 129 90
PPS1 TT6360 100 261 129 90
PPS1 TT8034 121 315 155 110
PPS1 TT8049 121 315 155 110
PPS1 TT8060 121 315 155 110
PPS1 TT8076 121 315 155 110
PPS1_TT
