PPS1 MR - Aluminium pipe reducing fitting

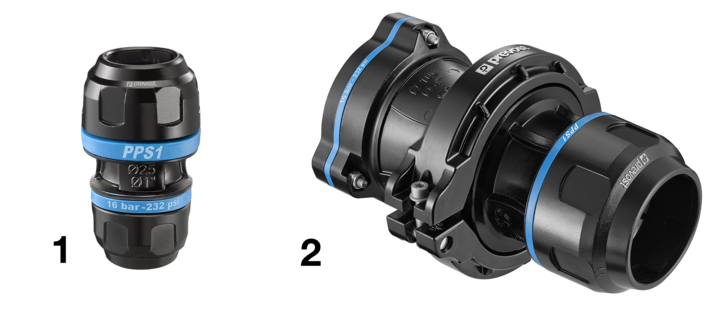

PPS1_MR2520_MR10080
PPS1_MR2520_MR10080
Net weight (kg)
5
Material
Aluminium
Max. output pressure
16.00 bar
Temperature
-20.00°C to 80.00°C
For pipe OD
100 mm mm
Numéro d'image
2.

Description

Reference
Net weight (kg)
Material
Max. output pressure
Temperature
For pipe OD
Numéro d'image
PPS1 MR10080
PPS1 MR2520
PPS1 MR3225
PPS1 MR4032
PPS1 MR5040
PPS1 MR6350
PPS1 MR8063

Dimensions

Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
PPS1 MR10080
211
291
PPS1 MR2520
46
85
38
PPS1 MR3225
57
102
46
PPS1 MR4032
68
122
57
PPS1 MR5040
84
142
68
PPS1 MR6350
100
170
84
PPS1 MR8063
121
194
100

Description

Reference Net weight (kg) Material Max. output pressure Temperature For pipe OD Numéro d'image 3D
PPS1 MR10080 5 Aluminium 16.00 bar -20.00°C to 80.00°C 100 mm mm 2. 3D
PPS1 MR2520 0,142 Aluminium 16.00 bar -20.00°C to 80.00°C 25 mm mm 1. 3D
PPS1 MR3225 0,235 Aluminium 16.00 bar -20.00°C to 80.00°C 32 mm mm 1. 3D
PPS1 MR4032 0,39 Aluminium 16.00 bar -20.00°C to 80.00°C 40 mm mm 1. 3D
PPS1 MR5040 0,684 Aluminium 16.00 bar -20.00°C to 80.00°C 50 mm mm 1. 3D
PPS1 MR6350 1,15 Aluminium 16.00 bar -20.00°C to 80.00°C 63 mm mm 1. 3D
PPS1 MR8063 1,73 Aluminium 16.00 bar -20.00°C to 80.00°C 80 mm mm 1. 3D
