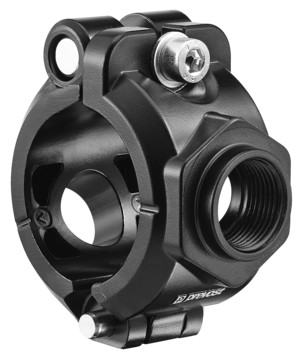

PPS1 BFT - Straight aluminum tapping flange parallel female thread

3570_PPS1_BFT5027
3570_PPS1_BFT5027
Net weight (kg)
0,906
Material
Aluminium
Max. output pressure
16.00 bar
Female thread
G3/4
Temperature
-20.00°C to 80.00°C
For pipe OD
100 mm mm

Description

Reference
Net weight (kg)
Material
Max. output pressure
Female thread
Temperature
For pipe OD
PPS1 BFT10027
PPS1 BFT10034
PPS1 BFT10049
PPS1 BFT2512
PPS1 BFT2527
PPS1 BFT3212
PPS1 BFT3227
PPS1 BFT4012
PPS1 BFT4027
PPS1 BFT4034
PPS1 BFT5012
PPS1 BFT5027
PPS1 BFT5034
PPS1 BFT6312
PPS1 BFT6327
PPS1 BFT6334
PPS1 BFT6342
PPS1 BFT8012
PPS1 BFT8027
PPS1 BFT8034
PPS1 BFT8042
PPS1 BFT16034
PPS1 BFT16060
PPS1 BFT16090

Dimensions

PPS1_BFT
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
PPS1 BFT10027
159
138
PPS1 BFT10034
159
138
PPS1 BFT10049
159
138
PPS1 BFT2512
65
64
PPS1 BFT2527
65
65
PPS1 BFT3212
65
64
PPS1 BFT3227
65
65
PPS1 BFT4012
94
88
PPS1 BFT4027
94
88
PPS1 BFT4034
94
92
PPS1 BFT5012
94
88
PPS1 BFT5027
94
88
PPS1 BFT5034
94
92
PPS1 BFT6312
137
129
PPS1 BFT6327
137
129
PPS1 BFT6334
137
129
PPS1 BFT6342
137
131
PPS1 BFT8012
137
129
PPS1 BFT8027
137
129
PPS1 BFT8034
137
129
PPS1 BFT8042
137
131
PPS1 BFT16034
PPS1 BFT16060
PPS1 BFT16090

Description

Reference Net weight (kg) Material Max. output pressure Female thread Temperature For pipe OD 3D
PPS1 BFT10027 0,906 Aluminium 16.00 bar G3/4 -20.00°C to 80.00°C 100 mm mm 3D
PPS1 BFT10034 0,886 Aluminium 16.00 bar G1 -20.00°C to 80.00°C 100 mm mm 3D
PPS1 BFT10049 0,828 Aluminium 16.00 bar G1 1/2 -20.00°C to 80.00°C 100 mm mm 3D
PPS1 BFT2512 0,156 Aluminium 16.00 bar G1/2 -20.00°C to 80.00°C 25 mm mm 3D
PPS1 BFT2527 0,152 Aluminium 16.00 bar G3/4 -20.00°C to 80.00°C 25 mm mm 3D
PPS1 BFT3212 0,142 Aluminium 16.00 bar G1/2 -20.00°C to 80.00°C 32 mm mm 3D
PPS1 BFT3227 0,137 Aluminium 16.00 bar G3/4 -20.00°C to 80.00°C 32 mm mm 3D
PPS1 BFT4012 0,448 Aluminium 16.00 bar G1/2 -20.00°C to 80.00°C 40 mm mm 3D
PPS1 BFT4027 0,446 Aluminium 16.00 bar G3/4 -20.00°C to 80.00°C 40 mm mm 3D
PPS1 BFT4034 0,443 Aluminium 16.00 bar G1 -20.00°C to 80.00°C 40 mm mm 3D
PPS1 BFT5012 0,392 Aluminium 16.00 bar G1/2 -20.00°C to 80.00°C 50 mm mm 3D
PPS1 BFT5027 0,385 Aluminium 16.00 bar G3/4 -20.00°C to 80.00°C 50 mm mm 3D
PPS1 BFT5034 0,383 Aluminium 16.00 bar G1 -20.00°C to 80.00°C 50 mm mm 3D
PPS1 BFT6312 0,945 Aluminium 16.00 bar G1/2 -20.00°C to 80.00°C 63 mm mm 3D
PPS1 BFT6327 0,94 Aluminium 16.00 bar G3/4 -20.00°C to 80.00°C 63 mm mm 3D
PPS1 BFT6334 0,915 Aluminium 16.00 bar G1 -20.00°C to 80.00°C 63 mm mm 3D
PPS1 BFT6342 0,917 Aluminium 16.00 bar G1 1/4 -20.00°C to 80.00°C 63 mm mm 3D
PPS1 BFT8012 0,84 Aluminium 16.00 bar G1/2 -20.00°C to 80.00°C 80 mm mm 3D
PPS1 BFT8027 0,831 Aluminium 16.00 bar G3/4 -20.00°C to 80.00°C 80 mm mm 3D
PPS1 BFT8034 0,82 Aluminium 16.00 bar G1 -20.00°C to 80.00°C 80 mm mm 3D
PPS1 BFT8042 0,811 Aluminium 16.00 bar G1 1/4 -20.00°C to 80.00°C 80 mm mm 3D
PPS1 BFT16034 16.00 bar G1 -20.00°C to 80.00°C 160 mm mm 3D
PPS1 BFT16060 16.00 bar G2 -20.00°C to 80.00°C 160 mm mm 3D
PPS1 BFT16090 16.00 bar G3 -20.00°C to 80.00°C 160 mm mm 3D

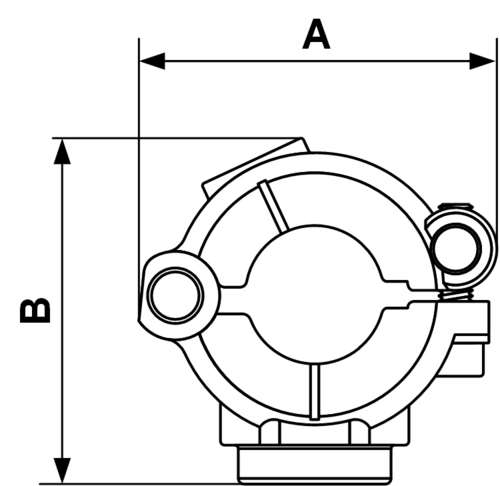

Dimensions

Reference A mm B mm
PPS1 BFT10027 159 138
PPS1 BFT10034 159 138
PPS1 BFT10049 159 138
PPS1 BFT2512 65 64
PPS1 BFT2527 65 65
PPS1 BFT3212 65 64
PPS1 BFT3227 65 65
PPS1 BFT4012 94 88
PPS1 BFT4027 94 88
PPS1 BFT4034 94 92
PPS1 BFT5012 94 88
PPS1 BFT5027 94 88
PPS1 BFT5034 94 92
PPS1 BFT6312 137 129
PPS1 BFT6327 137 129
PPS1 BFT6334 137 129
PPS1 BFT6342 137 131
PPS1 BFT8012 137 129
PPS1 BFT8027 137 129
PPS1 BFT8034 137 129
PPS1 BFT8042 137 131
PPS1 BFT16034
PPS1 BFT16060
PPS1 BFT16090
PPS1_BFT
