PPS1 9CCC160-3X4
3D

PPS1 9CCC - 90° Aluminium equal female elbow fitting CC

Material
Aluminium
Max. output pressure
16 bar
Temperature
-20°C to 80°C

Plus de références

Reference
Net weight (kg)
Pour tube Ø ext.
PPS1 9CCC50
PPS1 9CCC63
PPS1 9CCC80
PPS1 9CCC100
PPS1 9CCC160

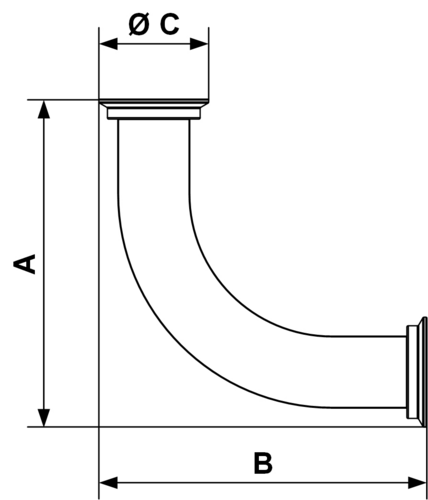

Dimensions

PPS1_9CCC_50_63_80_100
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
PPS1 9CCC50
152
152
90
PPS1 9CCC63
175
175
110
PPS1 9CCC80
192
192
125
PPS1 9CCC100
232
232
154
PPS1 9CCC160
300
300
202
Reference Net weight (kg) Pour tube Ø ext. 3D
PPS1 9CCC50 0.690 Kg 50 mm mm 3D
PPS1 9CCC63 1.92 Kg 63 mm mm 3D
PPS1 9CCC80 1.46 Kg 80 mm mm 3D
PPS1 9CCC100 4.21 Kg 100 mm mm 3D
PPS1 9CCC160 4.7 Kg 160 mm 3D

Dimensions

Reference A mm B mm C mm
PPS1 9CCC50 152 152 90
PPS1 9CCC63 175 175 110
PPS1 9CCC80 192 192 125
PPS1 9CCC100 232 232 154
PPS1 9CCC160 300 300 202
PPS1_9CCC_50_63_80_100
