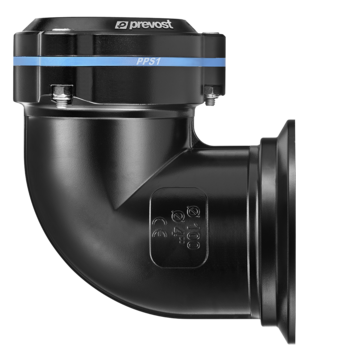

PPS1 9CC - 90° Aluminium equal female elbow fitting for CC pipe passage

PPS1_9CC100
PPS1_9CC100
Net weight (kg)
3,15
Material
Aluminium
Max. output pressure
16.00 bar
Temperature
-20.00°C to 80.00°C
For pipe OD
100 mm mm
Numéro d'image
2.

Description

Reference
Net weight (kg)
Material
Max. output pressure
Temperature
For pipe OD
Numéro d'image
PPS1 9CC100
PPS1 9CC50
PPS1 9CC63
PPS1 9CC80

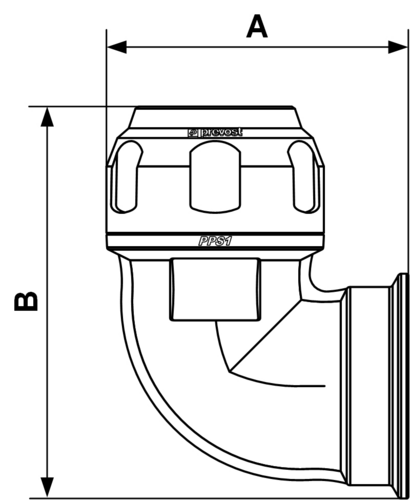

Dimensions

PPS1_9CC50_63_80
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
PPS1 9CC100
207
231
PPS1 9CC50
116
153
PPS1 9CC63
140
187
PPS1 9CC80
168
218

Description

Reference Net weight (kg) Material Max. output pressure Temperature For pipe OD Numéro d'image 3D
PPS1 9CC100 3,15 Aluminium 16.00 bar -20.00°C to 80.00°C 100 mm mm 2. 3D
PPS1 9CC50 0,794 Aluminium 16.00 bar -20.00°C to 80.00°C 50 mm mm 1. 3D
PPS1 9CC63 1,36 Aluminium 16.00 bar -20.00°C to 80.00°C 63 mm mm 1. 3D
PPS1 9CC80 2,04 Aluminium 16.00 bar -20.00°C to 80.00°C 80 mm mm 1. 3D

Dimensions

Reference A mm B mm
PPS1 9CC100 207 231
PPS1 9CC50 116 153
PPS1 9CC63 140 187
PPS1 9CC80 168 218
PPS1_9CC50_63_80
