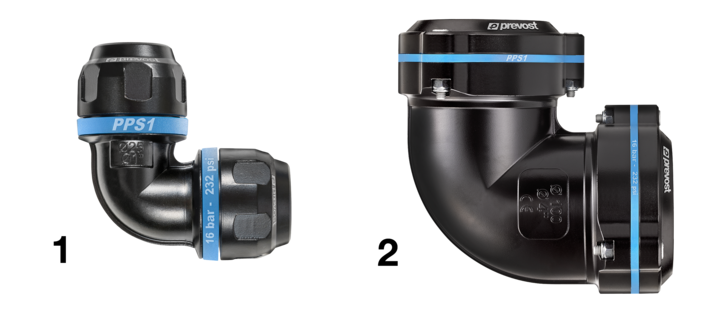

PPS1 9C - 90° Aluminium equal female elbow fitting for pipe

The PREVOST PIPING SYSTEM’s equal female elbows for pipes are made of aluminum, compact, lightweight and easy to install. The product is durable, recyclable and can also be easily modified. Fittings are treated with an electrocoating process to protect them from corrosion.
Material
Aluminium
Max. output pressure
16 bar
Temperature
-20°C to 80°C

Plus de références

Reference
Net weight (kg)
Pour tube Ø ext.
Numéro d'image
PPS1 9C16
PPS1 9C20
PPS1 9C25
PPS1 9C32
PPS1 9C40
PPS1 9C50
PPS1 9C63
PPS1 9C80
PPS1 9C100

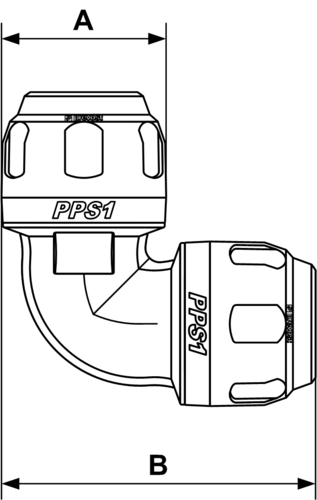

Dimensions

PPS1_9C
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
PPS1 9C16
32
62
PPS1 9C20
38
73
PPS1 9C25
46
89
PPS1 9C32
57
106
PPS1 9C40
68
135
PPS1 9C50
84
151
PPS1 9C63
100
180
PPS1 9C80
121
218
PPS1 9C100
153.5
224
Reference Net weight (kg) Pour tube Ø ext. Numéro d'image 3D
PPS1 9C16 0.076 Kg 16 mm 1. 3D
PPS1 9C20 0.108 Kg 20 mm 1. 3D
PPS1 9C25 0.2 Kg 25 mm 1. 3D
PPS1 9C32 0.33 Kg 32 mm 1. 3D
PPS1 9C40 0.53 Kg 40 mm 1. 3D
PPS1 9C50 0.913 Kg 50 mm 1. 3D
PPS1 9C63 1.5 Kg 63 mm 1. 3D
PPS1 9C80 2.28 Kg 80 mm 1. 3D
PPS1 9C100 3,76 Kg 100 mm 2. 3D

Dimensions

Reference A mm B mm
PPS1 9C16 32 62
PPS1 9C20 38 73
PPS1 9C25 46 89
PPS1 9C32 57 106
PPS1 9C40 68 135
PPS1 9C50 84 151
PPS1 9C63 100 180
PPS1 9C80 121 218
PPS1 9C100 153.5 224
PPS1_9C
