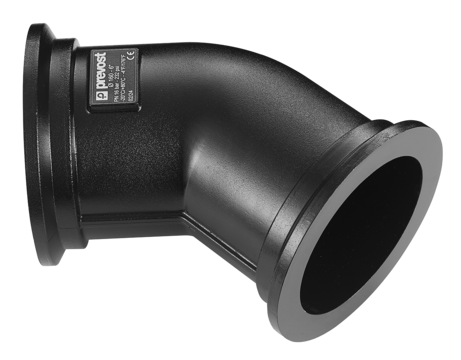

PPS1 4CCC160-3X4
3D

PPS1 4CC - 45° aluminium equal female elbow fitting CC

Material
Aluminium
Max. output pressure
16 bar
Temperature
-20°C to 80°C

Plus de références

Reference
Net weight (kg)
Pour tube Ø ext.
PPS1 4CCC50
PPS1 4CCC63
PPS1 4CCC80
PPS1 4CCC100
PPS1 4CCC160

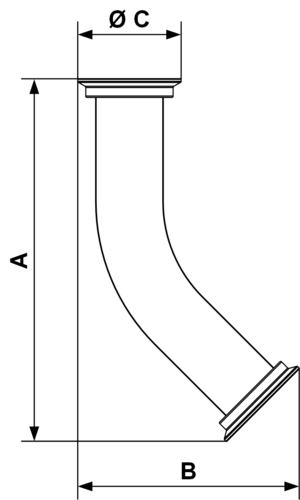

Dimensions

PPS1_4CCC_50_63_80_100
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
PPS1 4CCC50
185
140
90
PPS1 4CCC63
205
165
110
PPS1 4CCC80
220
180
125
PPS1 4CCC100
264
218
154
PPS1 4CCC160
332
280
202
Reference Net weight (kg) Pour tube Ø ext. 3D
PPS1 4CCC50 0.59 Kg 50 mm 3D
PPS1 4CCC63 1.37 Kg 63 mm mm 3D
PPS1 4CCC80 2.07 Kg 80 mm mm 3D
PPS1 4CCC100 1.89 Kg 100 mm 3D
PPS1 4CCC160 4.2 Kg 160 mm 3D

Dimensions

Reference A mm B mm C mm
PPS1 4CCC50 185 140 90
PPS1 4CCC63 205 165 110
PPS1 4CCC80 220 180 125
PPS1 4CCC100 264 218 154
PPS1 4CCC160 332 280 202
PPS1_4CCC_50_63_80_100
