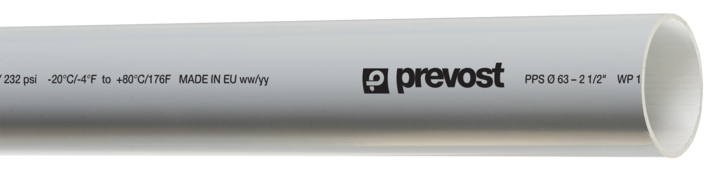

PPS - Aluminium grey pipe for vacuum

Net weight (kg)

11,9

Lenght

5.50 m

Material

Aluminium

Max. output pressure

16.00 bar

Temperature

-20.00°C to 80.00°C

For pipe OD

100 mm mm

Description

Reference

Net weight (kg)

Lenght

Material

Max. output pressure

Temperature

For pipe OD

PPS GTU10055

PPS GTU1640

PPS GTU2055

PPS GTU2555

PPS GTU3255

PPS GTU4055

PPS GTU5055

PPS GTU6355

PPS GTU8055

PPS GTU16055

Dimensions

Reference

A (mm)

B (mm)

C (mm)

D (mm)

E (mm)

PPS GTU10055

PPS GTU1640

1.3

PPS GTU2055

1.3

PPS GTU2555

1.4

PPS GTU3255

1.5

PPS GTU4055

1.8

PPS GTU5055

PPS GTU6355

PPS GTU8055

2.4

PPS GTU16055

Description

Reference	Net weight (kg)	Lenght	Material	Max. output pressure	Temperature	For pipe OD
PPS GTU10055	11,9	5.50 m	Aluminium	16.00 bar	-20.00°C to 80.00°C	100 mm mm
PPS GTU1640	0,65	4.00 m	Aluminium	16.00 bar	-20.00°C to 80.00°C	16 mm mm
PPS GTU2055	1,1	5.50 m	Aluminium	16.00 bar	-20.00°C to 80.00°C	20 mm mm
PPS GTU2555	1,55	5.50 m	Aluminium	16.00 bar	-20.00°C to 80.00°C	25 mm mm
PPS GTU3255	2,05	5.50 m	Aluminium	16.00 bar	-20.00°C to 80.00°C	32 mm mm
PPS GTU4055	3,2	5.50 m	Aluminium	16.00 bar	-20.00°C to 80.00°C	40 mm mm
PPS GTU5055	4,55	5.50 m	Aluminium	16.00 bar	-20.00°C to 80.00°C	50 mm mm
PPS GTU6355	5,8	5.50 m	Aluminium	16.00 bar	-20.00°C to 80.00°C	63 mm mm
PPS GTU8055	8,8	5.50 m	Aluminium	16.00 bar	-20.00°C to 80.00°C	80 mm mm
PPS GTU16055		5.50 m		16.00 bar	-20.00°C to 80.00°C	160 mm mm

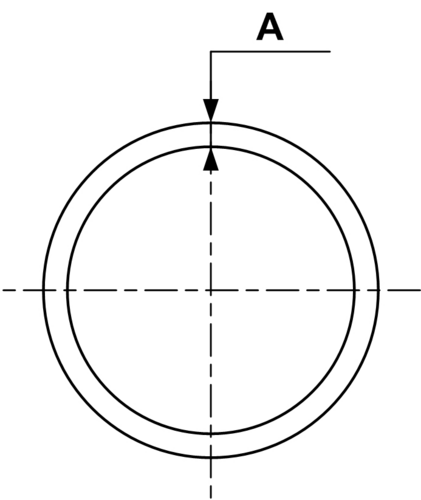

Dimensions

Reference	A mm
PPS GTU10055
PPS GTU1640	1.3
PPS GTU2055	1.3
PPS GTU2555	1.4
PPS GTU3255	1.5
PPS GTU4055	1.8
PPS GTU5055	2
PPS GTU6355	2
PPS GTU8055	2.4
PPS GTU16055
