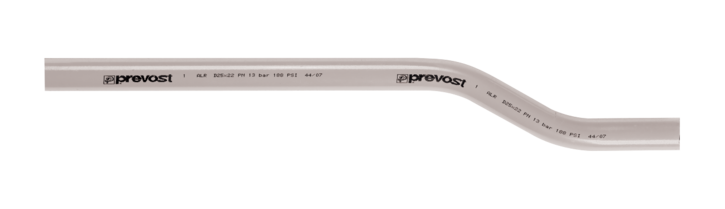

PPS - Aluminium grey bended link pipe
Net weight (kg)
0,0713
Material
Aluminium
Max. output pressure
16.00 bar
Temperature
-20.00°C to 80.00°C
For pipe OD
16 mm mm
Description
Reference
Net weight (kg)
Material
Max. output pressure
Temperature
For pipe OD
PPS LMCG16
PPS LMCG20
PPS LMCG25
Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
PPS LMCG16
86
480
16
PPS LMCG20
90
487
20
PPS LMCG25
Description
| Reference | Net weight (kg) | Material | Max. output pressure | Temperature | For pipe OD | 3D |
|---|---|---|---|---|---|---|
| PPS LMCG16 | 0,0713 | Aluminium | 16.00 bar | -20.00°C to 80.00°C | 16 mm mm | |
| PPS LMCG20 | 0,105 | Aluminium | 16.00 bar | -20.00°C to 80.00°C | 20 mm mm | |
| PPS LMCG25 | 0,143 | Aluminium | 16.00 bar | -20.00°C to 80.00°C | 25 mm mm |
