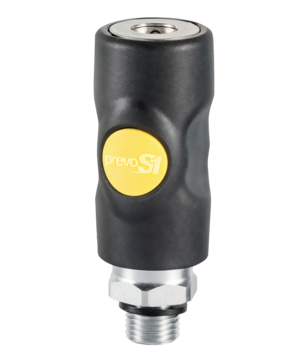

Parallel male thread coupler
Net weight (kg)
0,124
Flow rate
800 l/min (P = 6 bar ,ΔP = 0.60 bar)
Disconnection
Button
Male thread
G1/2
Material
Composite
Max. output pressure
12 bar
Security
Safety
Temperature
-15°C to 70°C
ID passage
6 mm
Profile
ARO 210
Type of filling
Valved
Description
Reference
Net weight (kg)
Flow rate
Disconnection
Male thread
Material
Max. output pressure
Security
Temperature
ID passage
Profile
Type of filling
ASI 061153
ASI 061151
ASI 061152

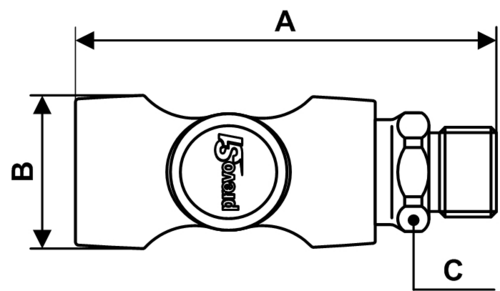

Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
ASI 061153
82.3
30
26
ASI 061151
76.3
30
20
ASI 061152
78.3
30
23
Description
Dimensions
| Reference | A mm | B mm | C mm |
|---|---|---|---|
| ASI 061153 | 82.3 | 30 | 26 |
| ASI 061151 | 76.3 | 30 | 20 |
| ASI 061152 | 78.3 | 30 | 23 |
