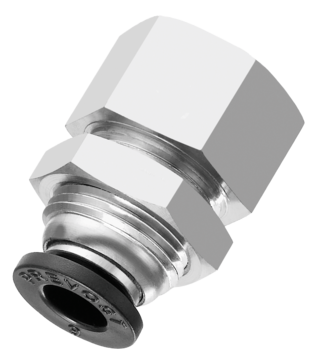

Parallel female straight bulkhead fitting - RPD TG
Net weight (kg)
0,016
Ø ext. (mm)
4.00
Material
Polymer
Max. output pressure
10.00 bar
Female thread
G1/8
Temperature
0.00°C to 60.00°C
For pipe OD
4 mm
Description
Reference
Net weight (kg)
Ø ext. (mm)
Material
Max. output pressure
Female thread
Temperature
For pipe OD
RPD TG0400
RPD TG0401
RPD TG04M5
RPD TG0500
RPD TG0501
RPD TG0502
RPD TG0503
RPD TG05M5
RPD TG0600
RPD TG0601
RPD TG0602
RPD TG0603
RPD TG06M5
RPD TG0800
RPD TG0801
RPD TG0802
RPD TG0803
RPD TG1000
RPD TG1001
RPD TG1002
RPD TG1003
RPD TG1201
RPD TG1202
RPD TG1203
RPD TG1402
RPD TG1403
RPD TG1602
RPD TG1603
Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
RPD TG0400
24.5
16.5
14
15.5
10
RPD TG0401
26
20
17
17
10
RPD TG04M5
22
16.5
14
15
10
RPD TG0500
27
20
17
18.5
12.8
RPD TG0501
28
20
17
18.5
12.8
RPD TG0502
29.5
22
19
19.5
12.8
RPD TG0503
31
28
24
19
12.8
RPD TG05M5
23
16.5
14
16
12.8
RPD TG0600
27
20
17
18.5
12.8
RPD TG0601
28
20
17
18.5
12.8
RPD TG0602
29.5
22
19
19.5
12.8
RPD TG0603
31
28
24
19
12.8
RPD TG06M5
23
16.5
14
16
12.8
RPD TG0800
26.5
20
17
17.5
13.8
RPD TG0801
28
20
17
18.5
13.8
RPD TG0802
29
22
19
19
13.8
RPD TG0803
31.5
28
24
19.5
13.8
RPD TG1000
29.5
24.5
21
21
16.8
RPD TG1001
29.5
24.5
21
20
16.8
RPD TG1002
31.5
24.5
21
21.5
16.8
RPD TG1003
31.5
28
24
19.5
16.8
RPD TG1201
32
28
24
22.5
19.8
RPD TG1202
33
28
24
23
19.8
RPD TG1203
33
28
24
21
19.8
RPD TG1402
32.5
28
24
22.5
22.7
RPD TG1403
34.5
28
24
22.5
22.7
RPD TG1602
32.3
28
24
22.3
23.8
RPD TG1603
34.3
28
24
22.3
23.8
Description
| Reference | Net weight (kg) | Ø ext. (mm) | Material | Max. output pressure | Female thread | Temperature | For pipe OD | 3D |
|---|---|---|---|---|---|---|---|---|
| RPD TG0400 | 0,016 | 4.00 | Polymer | 10.00 bar | G1/8 | 0.00°C to 60.00°C | 4 mm | |
| RPD TG0401 | 0,019 | 4.00 | Polymer | 10.00 bar | G1/4 | 0.00°C to 60.00°C | 4 mm | |
| RPD TG04M5 | 0,016 | 4.00 | Polymer | 10.00 bar | M5 | 0.00°C to 60.00°C | 4 mm | |
| RPD TG0500 | 0,026 | 5.00 | Polymer | 10.00 bar | G1/8 | 0.00°C to 60.00°C | 5 mm | |
| RPD TG0501 | 0,025 | 5.00 | Polymer | 10.00 bar | G1/4 | 0.00°C to 60.00°C | 5 mm | |
| RPD TG0502 | 0,026 | 5.00 | Polymer | 10.00 bar | G3/8 | 0.00°C to 60.00°C | 5 mm | |
| RPD TG0503 | 0,037 | 5.00 | Polymer | 10.00 bar | G1/2 | 0.00°C to 60.00°C | 5 mm | |
| RPD TG05M5 | 0,02 | 5.00 | Polymer | 10.00 bar | M5 | 0.00°C to 60.00°C | 5 mm | |
| RPD TG0600 | 0,026 | 6.00 | Polymer | 10.00 bar | G1/8 | 0.00°C to 60.00°C | 6 mm | |
| RPD TG0601 | 0,025 | 6.00 | Polymer | 10.00 bar | G1/4 | 0.00°C to 60.00°C | 6 mm | |
| RPD TG0602 | 0,026 | 6.00 | Polymer | 10.00 bar | G3/8 | 0.00°C to 60.00°C | 6 mm | |
| RPD TG0603 | 0,037 | 6.00 | Polymer | 10.00 bar | G1/2 | 0.00°C to 60.00°C | 6 mm | |
| RPD TG06M5 | 0,02 | 6.00 | Polymer | 10.00 bar | M5 | 0.00°C to 60.00°C | 6 mm | |
| RPD TG0800 | 0,03 | 8.00 | Polymer | 10.00 bar | G1/8 | 0.00°C to 60.00°C | 8 mm | |
| RPD TG0801 | 0,026 | 8.00 | Polymer | 10.00 bar | G1/4 | 0.00°C to 60.00°C | 8 mm | |
| RPD TG0802 | 0,027 | 8.00 | Polymer | 10.00 bar | G3/8 | 0.00°C to 60.00°C | 8 mm | |
| RPD TG0803 | 0,036 | 8.00 | Polymer | 10.00 bar | G1/2 | 0.00°C to 60.00°C | 8 mm | |
| RPD TG1000 | 0,048 | 10.00 | Polymer | 10.00 bar | G1/8 | 0.00°C to 60.00°C | 10 mm | |
| RPD TG1001 | 0,047 | 10.00 | Polymer | 10.00 bar | G1/4 | 0.00°C to 60.00°C | 10 mm | |
| RPD TG1002 | 0,044 | 10.00 | Polymer | 10.00 bar | G3/8 | 0.00°C to 60.00°C | 10 mm | |
| RPD TG1003 | 0,046 | 10.00 | Polymer | 10.00 bar | G1/2 | 0.00°C to 60.00°C | 10 mm | |
| RPD TG1201 | 0,062 | 12.00 | Polymer | 10.00 bar | G1/4 | 0.00°C to 60.00°C | 12 mm | |
| RPD TG1202 | 0,06 | 12.00 | Polymer | 10.00 bar | G3/8 | 0.00°C to 60.00°C | 12 mm | |
| RPD TG1203 | 0,05 | 12.00 | Polymer | 10.00 bar | G1/2 | 0.00°C to 60.00°C | 12 mm | |
| RPD TG1402 | 0,073 | 14.00 | Polymer | 10.00 bar | G3/8 | 0.00°C to 60.00°C | 14 mm | |
| RPD TG1403 | 0,068 | 14.00 | Polymer | 10.00 bar | G1/2 | 0.00°C to 60.00°C | 14 mm | |
| RPD TG1602 | 0,065 | 16.00 | Polymer | 10.00 bar | G3/8 | 0.00°C to 60.00°C | 16 mm | |
| RPD TG1603 | 0,064 | 16.00 | Polymer | 10.00 bar | G1/2 | 0.00°C to 60.00°C | 16 mm |
Dimensions
| Reference | A mm | B mm | C mm | D mm | E mm |
|---|---|---|---|---|---|
| RPD TG0400 | 24.5 | 16.5 | 14 | 15.5 | 10 |
| RPD TG0401 | 26 | 20 | 17 | 17 | 10 |
| RPD TG04M5 | 22 | 16.5 | 14 | 15 | 10 |
| RPD TG0500 | 27 | 20 | 17 | 18.5 | 12.8 |
| RPD TG0501 | 28 | 20 | 17 | 18.5 | 12.8 |
| RPD TG0502 | 29.5 | 22 | 19 | 19.5 | 12.8 |
| RPD TG0503 | 31 | 28 | 24 | 19 | 12.8 |
| RPD TG05M5 | 23 | 16.5 | 14 | 16 | 12.8 |
| RPD TG0600 | 27 | 20 | 17 | 18.5 | 12.8 |
| RPD TG0601 | 28 | 20 | 17 | 18.5 | 12.8 |
| RPD TG0602 | 29.5 | 22 | 19 | 19.5 | 12.8 |
| RPD TG0603 | 31 | 28 | 24 | 19 | 12.8 |
| RPD TG06M5 | 23 | 16.5 | 14 | 16 | 12.8 |
| RPD TG0800 | 26.5 | 20 | 17 | 17.5 | 13.8 |
| RPD TG0801 | 28 | 20 | 17 | 18.5 | 13.8 |
| RPD TG0802 | 29 | 22 | 19 | 19 | 13.8 |
| RPD TG0803 | 31.5 | 28 | 24 | 19.5 | 13.8 |
| RPD TG1000 | 29.5 | 24.5 | 21 | 21 | 16.8 |
| RPD TG1001 | 29.5 | 24.5 | 21 | 20 | 16.8 |
| RPD TG1002 | 31.5 | 24.5 | 21 | 21.5 | 16.8 |
| RPD TG1003 | 31.5 | 28 | 24 | 19.5 | 16.8 |
| RPD TG1201 | 32 | 28 | 24 | 22.5 | 19.8 |
| RPD TG1202 | 33 | 28 | 24 | 23 | 19.8 |
| RPD TG1203 | 33 | 28 | 24 | 21 | 19.8 |
| RPD TG1402 | 32.5 | 28 | 24 | 22.5 | 22.7 |
| RPD TG1403 | 34.5 | 28 | 24 | 22.5 | 22.7 |
| RPD TG1602 | 32.3 | 28 | 24 | 22.3 | 23.8 |
| RPD TG1603 | 34.3 | 28 | 24 | 22.3 | 23.8 |
