MF_104SX
3D

Manifold

Material
Aluminium
Max. output pressure
12 bar
Temperature
-20°C to 80°C

Plus de références

Reference
Net weight (kg)
Outlet
Female thread
Image Number
MF 104S4
MF 104S6
MF 104S8
MF 104S10

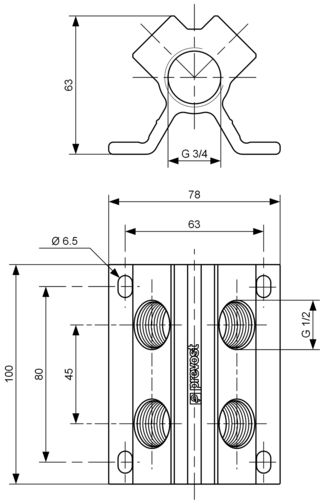

Dimensions

MF_104S4
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
MF 104S4
78
100
63
80
6.5
MF 104S6
78
145
63
125
6.5
MF 104S8
78
190
63
170
6.5
MF 104S10
78
235
63
215
6.5

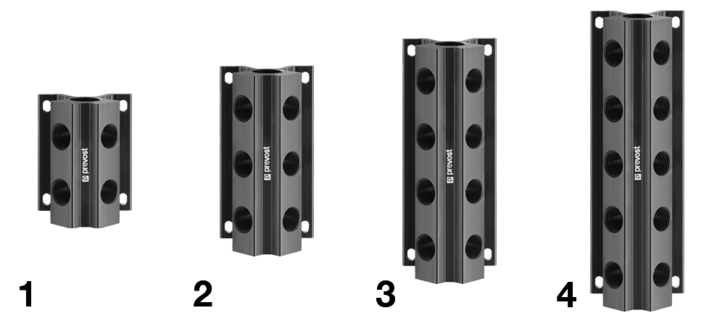

Reference Net weight (kg) Outlet Female thread Image Number 3D
MF 104S4 0.37 Kg 4 G1/2; G3/4 1. 3D
MF 104S6 0,53 Kg 6 G1/2; G3/4 2. 3D
MF 104S8 0.68 Kg 8 G1/2; G3/4 3. 3D
MF 104S10 0.845 Kg 10 G1/2; G3/4 4. 3D

Dimensions

Reference A mm B mm C mm D mm E mm
MF 104S4 78 100 63 80 6.5
MF 104S6 78 145 63 125 6.5
MF 104S8 78 190 63 170 6.5
MF 104S10 78 235 63 215 6.5
MF_104S4
